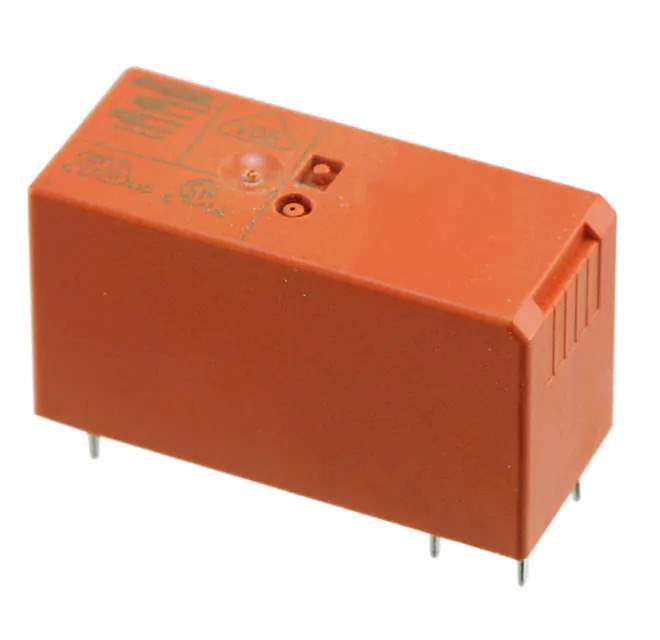

Same model may have multiple batches, images only for reference.

RTS3T012

Name: RTS3T012
Brand: TE Connectivity
SKU: 661781
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RTS3T012
Manufacturer	TE Connectivity
Catalog	Power Relays, Over 2 Amps
Description	RELAY GEN PURPOSE SPST 16A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Relays - Power Relays, Over 2 Amps
Mfr	TE Connectivity
Series	RT1, Inrush, SCHRACK
Package	Tube
Product Status	Active
Mounting Type	Through Hole
Coil Voltage	12VDC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	16 A
Switching Voltage	400VAC - Max
Coil Current	33.3 mA
Coil Type	Non Latching
Termination Style	PC Pin
Seal Rating	Sealed - Flux Protection
Coil Insulation	Class F
Must Operate Voltage	8.4 VDC
Must Release Voltage	1.2 VDC
Operate Time	10 ms
Release Time	5 ms
Temperature Range - Operating	-40°C ~ 85°C
Contact Material	Silver Tin Oxide (AgSnO), Tungsten (W)
Relay Type	General Purpose
Coil Resistance	360 Ohms
Base Product Number	RTS3
Standard Package	20 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.41.0050
Win Source Part Number	661781-RTS3T012
Ultra Librarian 3D Model	Ultra Librarian RTS3T012 CAD Model

Alternative Products

Description

The RTS3T012 is a power relay from the RT1 series by SCHRACK.

Contact Form: SPST-NO (1 Form A)
Contact Rating: 16A
Coil Voltage: 12VDC
Coil Resistance: 360 Ohms
Switching Voltage: Up to 400VAC
Release Time: 5ms
Designed for: General-purpose applications
Mounting: Through hole
Temperature Range: -40°C to 85°C
Design: Sealed and flux protection
Provides: Reliable and efficient power switching, especially for inrush applications
