Same model may have multiple batches, images only for reference.

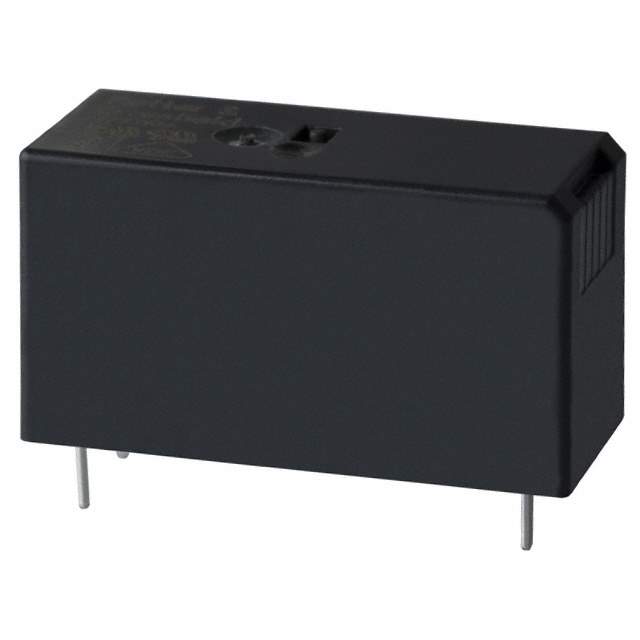

RTB34012F Real Image
Same model may have multiple batches, images only for reference.

RTB34012F

Part No RTB34012F
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 12A 12V / 1 pole 12A/16A, 1 form C (CO) or 1 form A (NO) contact
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube
Mounting Style Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 12A
Switching Voltage 400VAC - Max
Coil Current 33.3mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 8ms
Release Time 6ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 360 Ohms
Manufacturer Pack Quantity 20
MSL Level Not Applicable
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812868-RTB34012F
Ultra Librarian 3D Model Ultra Librarian RTB34012F CAD Model

Description

The TE Connectivity Potter & Brumfield Relay is a through-hole device.

  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Nickel (AgNi)
  • Coil Resistance: 360 Ohms
  • Coil Current: 33.3mA
  • Operate Time: 8ms
  • Release Time: 6ms
  • Relay Type: General Purpose
  • Coil Voltage: 12VDC
  • Contact Rating (Current): 12A
  • Switching Voltage: 400VAC - Max
