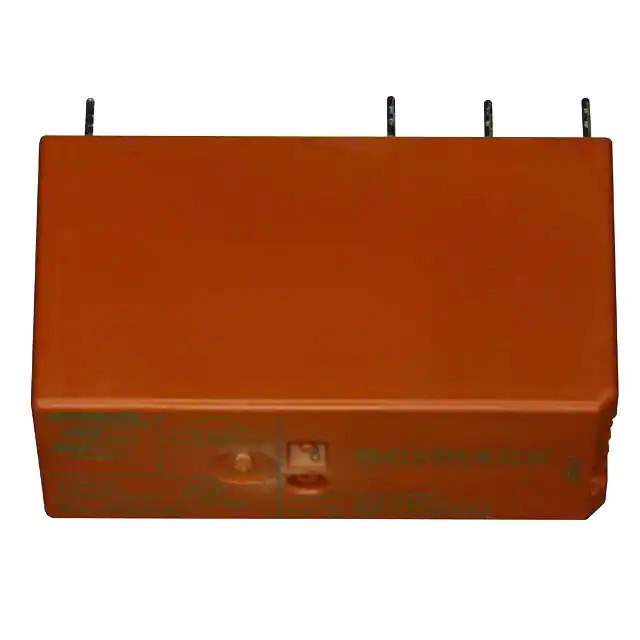

RT424F12 Real Image
Same model may have multiple batches, images only for reference.

RT424F12

Part No RT424F12
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 8A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series RT2 Bistable, SCHRACK
Package Box
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Coil Current 50 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 8.4 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 240 Ohms
Base Product Number RT4
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0080
Win Source Part Number 661423-RT424F12
Ultra Librarian 3D Model Ultra Librarian RT424F12 CAD Model

Description

The RT2 Bistable series power relay from Schrack is a versatile component designed for various power relay applications.

  • Contact Form: DPDT (2 Form C)
  • Contact Material: silver nickel (AgNi)
  • Coil Voltage: 12VDC
  • Coil Resistance: 240 Ohms
  • Operate Time: 10ms
  • Release Time: 5ms
  • Protection: sealed and offers flux protection
  • Mounting Type: through-hole
  • Operating Temperature Range: -40°C to 85°C
  • Application: general-purpose applications that require latching functionality
