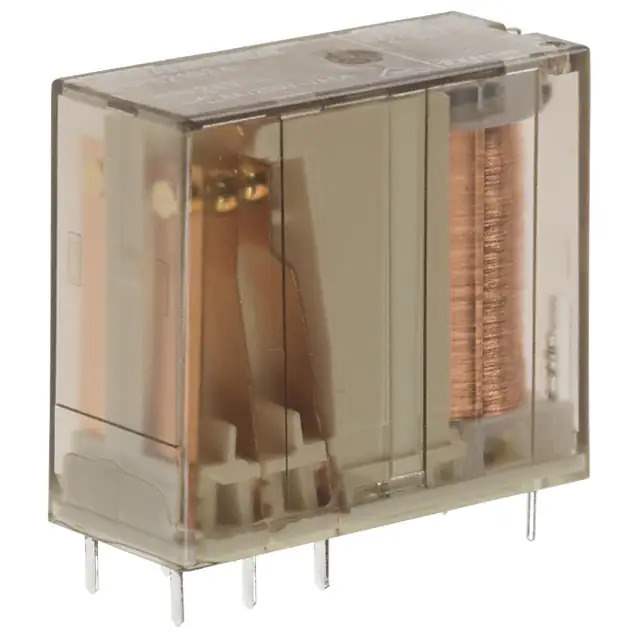

RP820024 Real Image
Same model may have multiple batches, images only for reference.

RP820024

Part No RP820024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 8A 24V / General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole
Datasheet
RP820024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series RP II/2, SCHRACK
Package Box
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Coil Current 21.8 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 9 ms
Release Time 3 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 1.1 kOhms
Base Product Number RP82
Standard Package 20 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 892222-RP820024
Ultra Librarian 3D Model Ultra Librarian RP820024 CAD Model

Description

The RP II/2 series power relay is a versatile relay designed for general-purpose applications.

  • Contact Material: silver cadmium oxide (AgCdO)
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.1 kOhms
  • Contact Rating: 8A
  • Switch Voltages: up to 400VAC
  • Release Time: 3ms
  • Operate Time: 9ms
  • Design: fully sealed design
  • Mounting: through hole
  • Temperature Range: -40°C to 70°C
  • Status: obsolete
