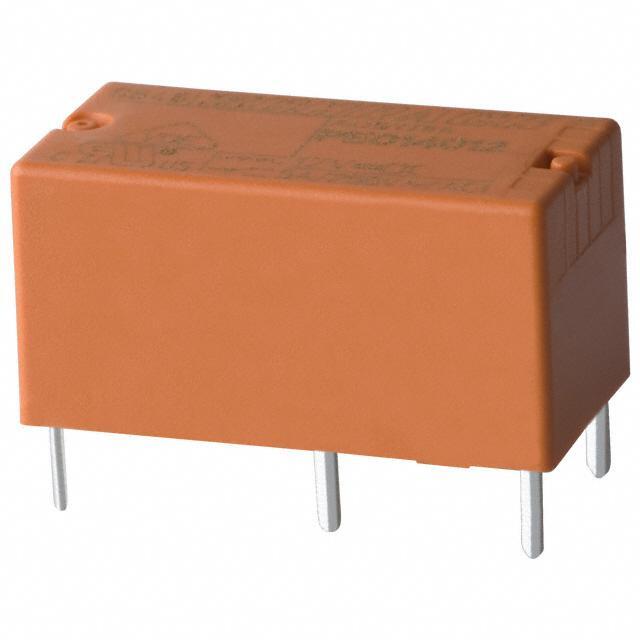

PE014005 TE Connectivity PE014005 real image PE014005 real image 2
Same model may have multiple batches, images only for reference.
PE014005 TE Connectivity PE014005 real image PE014005 real image 2
PE014005 TE Connectivity PE014005 real image PE014005 real image 2
Same model may have multiple batches, images only for reference.

PE014005

Part No PE014005
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GENERAL PURPOSE SPDT 5A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 40mA
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 5A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 3.8 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 8ms
Release Time 8ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 200 mW
Coil Resistance 125 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 038134-PE014005
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE014005 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays 038134-PE014005 is a general-purpose SPDT (1 Form C) relay.

  • Contact Form: SPDT (1 Form C)
  • Packaging: tube/rail
  • Mounting: through-hole technology
  • Coil Voltage: 5VDC
  • Coil Resistance: 125 Ohms
  • Switching Current: 5A
  • Switching Voltage: 400VAC - Max
  • Turn On Voltage: 3.8VDC
  • Turn Off Voltage: 0.5VDC
  • Temperature Range: -40°C to 85°C
