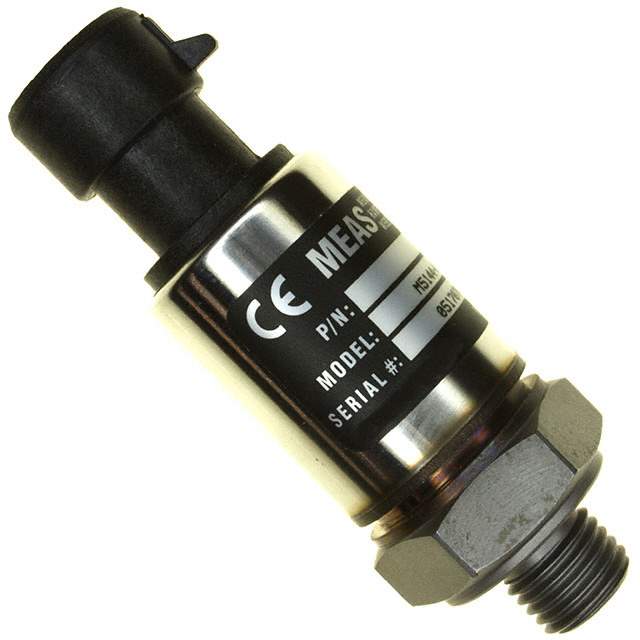

M5144-000004-100PG Real Image
Same model may have multiple batches, images only for reference.

M5144-000004-100PG

Part No M5144-000004-100PG
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description TRANSDUCER 1-5VDC 100PSI /
Datasheet
M5144-000004-100PG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers - Industrial
Mfr TE Connectivity Measurement Specialties
Series M5100
Package Box
Product Status Obsolete
Applications Industrial Automation
Pressure Type Vented Gauge
Operating Pressure 100PSI (689.48kPa)
Output Type Analog Voltage
Output 1 V ~ 5 V
Accuracy ±1%
Voltage - Supply 8V ~ 30V
Port Size Male - 7/16" (11.11mm) O-Ring
Port Style Threaded
Features Temperature Compensated
Maximum Pressure 200PSI (1378.95kPa)
Temperature Range - Operating -40°C ~ 125°C
Package / Case Cylinder
Base Product Number M5144
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Names 2266-M5144-000004-100PG,223-1057
Standard Package 1
Win Source Part Number 1074045-M5144-000004-100PG
Ultra Librarian 3D Model Ultra Librarian M5144-000004-100PG CAD Model

Description

The TE Connectivity Measurement Specialties M5144-000004-100PG is a pressure sensor designed for use in industrial automation applications.

  • Pressure Range: 100PSI
  • Maximum Pressure: 200PSI
  • Voltage Supply: 8V to 30V
  • Analog Voltage Output: 1V to 5V
  • Accuracy: ±1%
  • Operating Temperature Range: -40°C to 125°C
