Same model may have multiple batches, images only for reference.

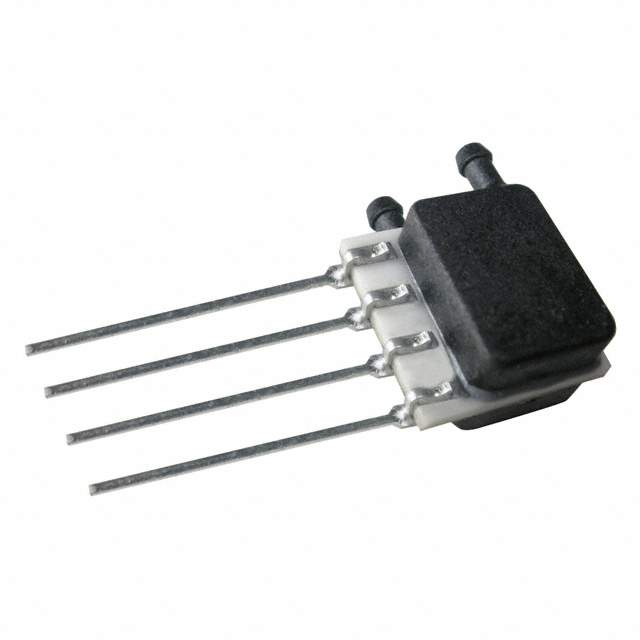

SSCSRRN060PGAA5 Real Image
Same model may have multiple batches, images only for reference.

SSCSRRN060PGAA5

Part No SSCSRRN060PGAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 60PSI GAUG 5V SIP / Pressure Sensor 60PSI (413.69kPa) Vented Gauge Male - 0.08" (1.92mm) Tube, Dual 0.5 V ~ 4.5 V 4-SIP, Dual Ports, Same Side
Datasheet
SSCSRRN060PGAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 60PSI (413.69kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.08" (1.92mm) Tube, Dual
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 120PSI (827.37kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP, Dual Ports, Same Side
Supplier Device Package 4-SIP
Base Product Number SSCSRRN
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234330-SSCSRRN060PGAA5
Ultra Librarian 3D Model Ultra Librarian SSCSRRN060PGAA5 CAD Model

Description

The SSCSRRN060PGAA5 component from Honeywell Sensing and Productivity Solutions is a high-quality pressure sensor designed for use in a wide range of applications.

  • Pressure Type: vented gauge
  • Operating Pressure: 60PSI (413.69kPa)
  • Port Size: male - 0.08" (1.92mm) tube, dual
  • Port Style: barbed
  • Output: 0.5 V ~ 4.5 V
  • Accuracy: ±0.25%
  • Package/Case: 4-SIP, dual ports, same side
  • Operating Temperature: -40°C to 85°C
  • EAR99: classification
