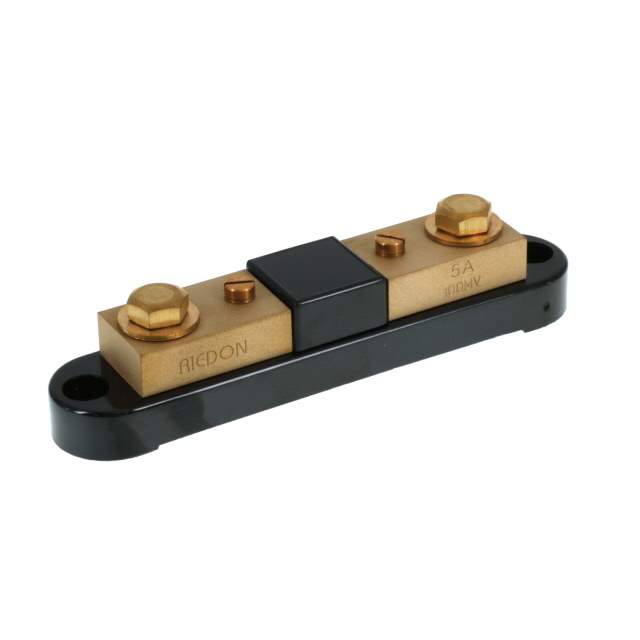

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Resistors
Manufacturer Riedon
Series RSN
Packaging Bulk
Resistance (Ohms) 0.02
Tolerance ±0.1%
Power (Watts) 0.5W, 1/2W
Composition Metal Element
Temperature Coefficient ±15ppm/°C
Operating Temperature Range 30°C ~ 70°C
Features Current Sense
Mounting Feature Flanges
Dimension 6.000" L x 1.250" W (152.40mm x 31.75mm)
Height - Seated (Maximum) 1.380" (35.05mm)
Package Rectangular Case
Win Source Part Number 794809-RSN-5-100B
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RSN-5-100B CAD Model

Description

The Riedon RSN-5-100B is a metal element rectangular case current sense resistor with a tolerance of ±0.1% and a temperature coefficient of ±15ppm/°C.

  • Power Rating: 0.5W
  • Mounting: Flanges
  • Resistance: 0.02 Ohms
  • Category: Resistors
  • Dimensions: 6.000" L x 1.250" W (152.40mm x 31.75mm)
  • Height (Seated): 1.380" (35.05mm)
  • Operating Temperature: 30°C to 70°C
