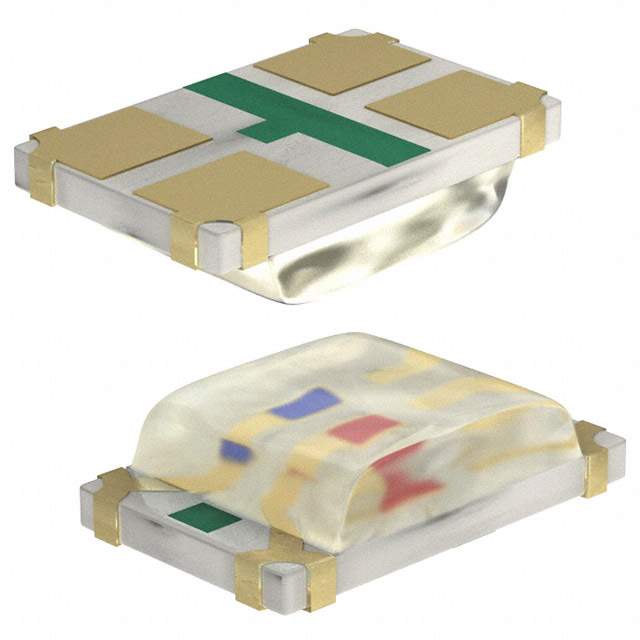

APHBM2012QBDCGKC Real Image
Same model may have multiple batches, images only for reference.

APHBM2012QBDCGKC

Part No APHBM2012QBDCGKC
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED BLUE/GREEN CLEAR 4SMD / Blue, Green 465nm Blue, 570nm Green LED Indication - Discrete 3.3V Blue, 2.1V Green 0805 (2012 Metric)
Datasheet
APHBM2012QBDCGKC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Color Blue, Green
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 80mcd Blue, 55mcd Green
Lens Style Rectangle with Flat Top
Lens Size 1.30mm x 1.25mm
Voltage - Forward (Vf) (Typ) 3.3V Blue, 2.1V Green
Current - Test 20mA Blue, 20mA Green
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 465nm Blue, 570nm Green
Wavelength - Peak 460nm Blue, 574nm Green
Package / Case 0805 (2012 Metric)
Supplier Device Package 4-SMD
Dimension 2.00mm L x 1.25mm W
Height (Max) 0.45mm
Base Product Number APHBM2012
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names APHBM2012QBDCGKC-ND,754-1857-2,754-1857-1,754-1857-6
Standard Package 2,000
Win Source Part Number 983811-APHBM2012QBDCGKC
Ultra Librarian 3D Model Ultra Librarian APHBM2012QBDCGKC CAD Model

Description

This product is an LED indication - discrete optoelectronic component that comes in blue and green colors from Kingbright.

  • Win Source Part Number: 983811-APHBM2012QBDCGKC
  • Package: Tape & Reel
  • Mounting: Surface Mount
  • Configuration: Independent
  • Viewing Angle: 120°
  • Lens Color: Colorless
  • Lens Transparency: Clear
  • Millicandela Rating (Blue): 80mcd
  • Millicandela Rating (Green): 55mcd
  • Voltage - Forward (Vf) (Typ) (Blue): 3.3V @ 20mA
  • Voltage - Forward (Vf) (Typ) (Green): 2.1V @ 20mA
  • Current - Test: 20mA
  • Wavelength - Dominant (Blue): 465nm
  • Wavelength - Dominant (Green): 570nm
  • Wavelength - Peak (Blue): 460nm
  • Wavelength - Peak (Green): 574nm
  • Height (Max): 0.45mm
  • Package/Case: 0805 (2012 Metric)
  • Supplier Device Package: 4-SMD
  • Dimension: 2.00mm L x 1.25mm W
  • Lens Style: Rectangle with a Flat Top
  • Lens Size: 1.30mm x 1.25mm
