Same model may have multiple batches, images only for reference.

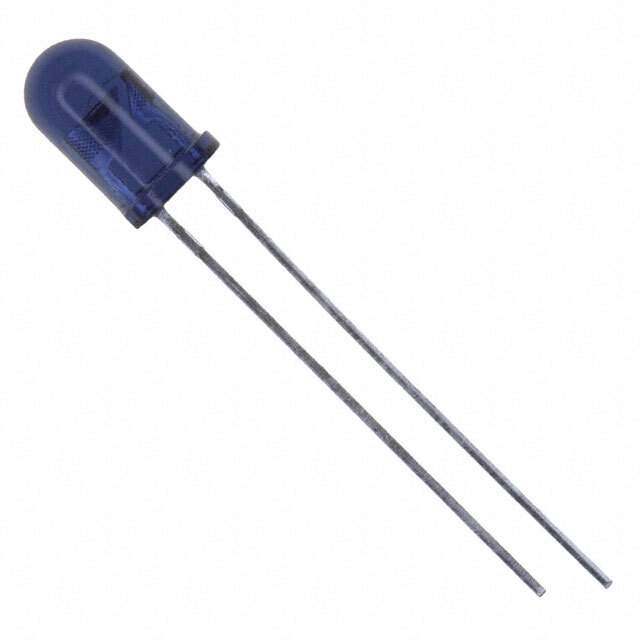

TSAL6200 Real Image
Same model may have multiple batches, images only for reference.

TSAL6200

Part No TSAL6200
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 940NM 100MA RADIAL
Datasheet
TSAL6200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Vishay
Packaging Bulk
Status Active
Type Infrared (IR)
Continuous forward current- Max 100mA
Radiant Intensity (Ie) Min @ If 40mW/sr @ 100mA
Wavelength 940nm
Forward Voltage 1.35V
Viewing Angle 34°
Orientation Top View
Temperature Range - Operating -40°C to 85°C (TA)
Mounting Through Hole
Dimension Radial, 5mm Dia (T 1 3/4)
Win Source Part Number 057142-TSAL6200
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Consumer Electronics, Motor Drive & Control
Ultra Librarian 3D Model Ultra Librarian TSAL6200 CAD Model

Description

The Vishay TSAL6200 is an infrared (IR) type of optoelectronic that is commonly used in consumer electronics, motor drive, and control.

  • Manufacturer: Vishay
  • Product Name: TSAL6200
  • Application: consumer electronics, motor drive, and control
  • Radiant Intensity (Ie): 40mW/sr @ 100mA
  • Viewing Angle: 34°
  • Forward Voltage: 1.35V
  • Continuous Forward Current: 100mA
  • Mounting Device: through-hole mounting device
  • Dimension: radial dimension of 5mm Dia (T 1 3/4)
