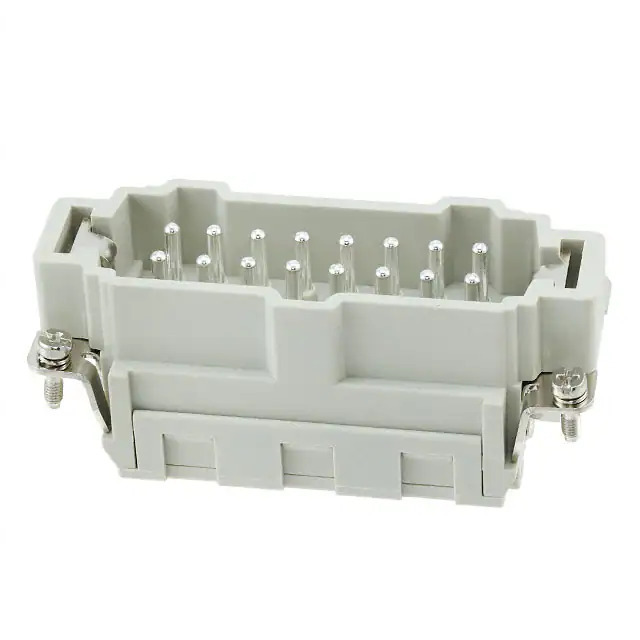

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Heavy Duty Connectors - Heavy Duty Connector Inserts, Modules
Mfr TE Connectivity AMP Connectors
Series HE
Package Bulk
Product Status Active
Connector Type Insert
Gender Male
Number of Positions 16
Size -
Termination Style Tension Clamp
Voltage Rating 500V
Current Rating (Amps) 16A
Contact Type -
Temperature Range - Operating -40°C ~ 125°C
Color -
Housing Material Polycarbonate (PC)
Contact Material -
Contact Finish -
Material Flammability Rating UL94 V-0
Base Product Number HE-016
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1368499-HE-016-MS
Ultra Librarian 3D Model Ultra Librarian HE-016-MS CAD Model

Description

The TE Connectivity AMP Connectors Heavy Duty Connector Insert, Module with Win Source Part Number 1368499-HE-016-MS is a reliable and versatile electronic component suitable for a wide range of applications.

  • Temperature Range: -40°C to 125°C
  • Current Rating: 16A
  • Voltage Rating: 500V
  • Gender: Male
  • Termination Style: Tension Clamp
  • Housing Material: Polycarbonate (PC)
  • Flammability Rating: UL94 V-0
  • Series: HE
  • Product Status: Active
  • Packaging: Bulk
