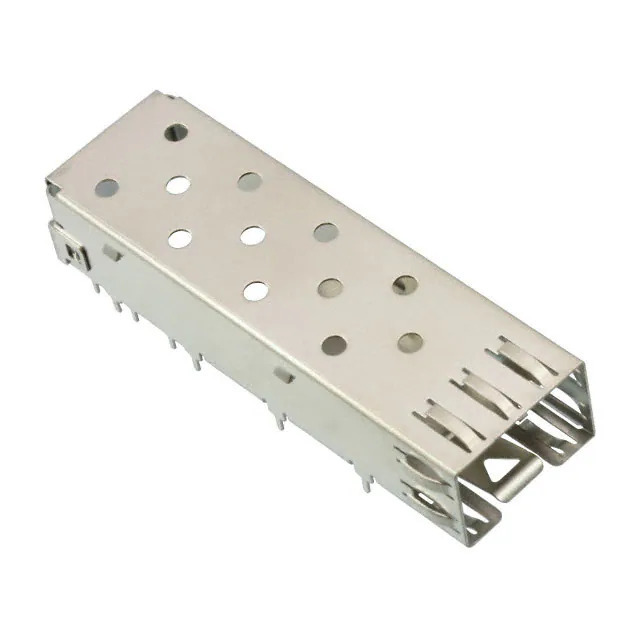

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Pluggable Connectors - Pluggable Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series -
Package Tray
Product Status Active
Connector Style Cage
Connector Type SFP
Number of Positions -
Mounting Type Through Hole, Right Angle
Termination Solder
Features EMI Shielded
Contact Finish -
Contact Finish Thickness -
Base Product Number 2227303
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1363609-2227303-3
Ultra Librarian 3D Model Ultra Librarian 2227303-3 CAD Model

Description

The 1363609-2227303-3 is a pluggable connector assembly from TE Connectivity AMP Connectors.

  • Connector Type: SFP
  • Mounting Type: Right angle, through-hole
  • Shielding: EMI shielded
  • Packaging: Tray
  • Status: Active
  • Base Product Number: 2227303
  • HTSUS Code: 8538.90.8180
  • ECCN: EAR99
