HE-016-F(17-32) TE Connectivity
Same model may have multiple batches, images only for reference.

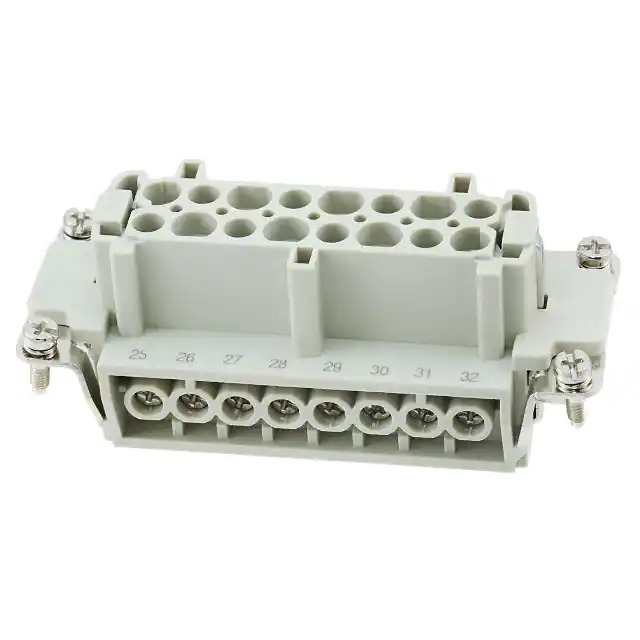

HE-016-F(17-32)

Part No HE-016-F(17-32)
Manufacturer TE Connectivity
Catalog Heavy Duty Connectors
Description INSERT FEMALE 16POS SCREW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Heavy Duty Connectors - Heavy Duty Connector Inserts, Modules
Mfr TE Connectivity AMP Connectors
Series HE
Package Bulk
Product Status Active
Connector Type Insert
Gender Female
Number of Positions 16
Size -
Termination Style Screw
Voltage Rating 500V
Current Rating (Amps) 16A
Contact Type -
Temperature Range - Operating -40°C ~ 125°C
Color -
Housing Material Polycarbonate (PC)
Contact Material -
Contact Finish -
Material Flammability Rating UL94 V-0
Base Product Number HE-016
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 1368503-HE-016-F(17-32)
Ultra Librarian 3D Model Ultra Librarian HE-016-F(17-32) CAD Model

Description

The TE Connectivity AMP Connectors HE series offers heavy-duty connector inserts and modules for various applications.

  • Model: HE-016
  • Gender: Female
  • Positions: 16
  • Current Rating: 16A
  • Temperature Range: -40°C to 125°C
  • Termination Style: Screw
  • Housing Material: Polycarbonate (PC)
  • Voltage Rating: 500V
  • HTSUS Code: 8536.69.4030
  • Product Status: Active
  • Base Product Number: HE-016
  • Packaging: Bulk
