Same model may have multiple batches, images only for reference.

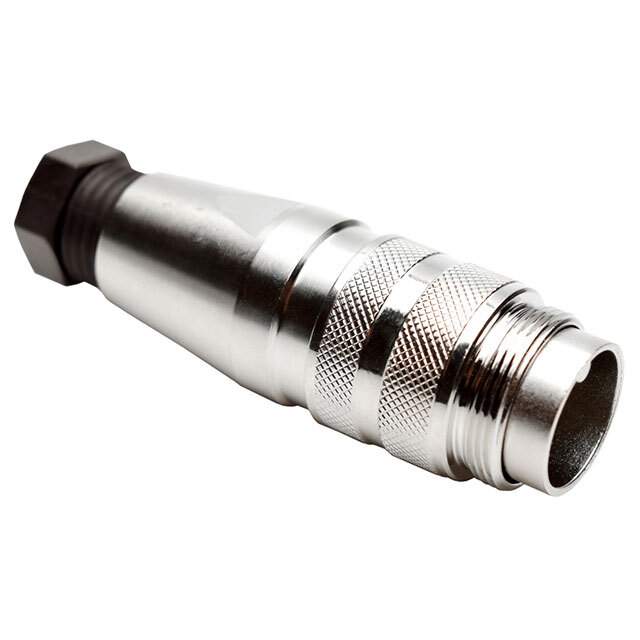

C091 11H007 000 2 Real Image
Same model may have multiple batches, images only for reference.

C091 11H007 000 2

Part No C091 11H007 000 2
Manufacturer Amphenol
Catalog Circular Connectors
Description CONN PLUG HSNG MALE 7POS INLINE / 7 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
Datasheet
C091 11H007 000 2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr Amphenol Tuchel Industrial
Series C091D
Package Bulk
Connector Type Plug Housing
Type For Male Pins
Number of Positions 7
Shell Size - Insert M16-7
Contact Type Crimp
Contact Size 1.5mm
Mounting Type Free Hanging (In-Line)
Fastening Type Threaded
Orientation Keyed
Shell Material Die Cast
Shell Finish Nickel
Housing Color Silver
Ingress Protection IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating UL94 V-0
Features Backshell, Cable Clamp, Coupling Nut
Shielding Shielded
Note Contacts Not Included
Includes 10 pcs - 1 Connector, 1 Backshell, 2 pc Cable Clamp, 1 Cable Nut, 1 Gasket, 2 Screws, 2 Washers
Insert Material Thermoplastic
Contact Shape Circular
Temperature Range - Operating -40°C ~ 100°C
Base Product Number C091 11H007
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Other Names C09111H0070002U,C091 11H007 000 2-ND,C09111H0070002,889-2204,C091 11H007 000 2U
Standard Package 100
Win Source Part Number 981825-C091 11H007 000 2
Ultra Librarian 3D Model Ultra Librarian C091 11H007 000 2 CAD Model

Description

The Amphenol Tuchel Industrial C091D C09111H0070002 plug housing is a circular connector with a silver housing color.

  • Housing Color: silver
  • Pins: male
  • Positions: 7
  • Includes: backshell, cable clamp, coupling nut
  • Protection: shielded to provide IP65/IP67/IP69K ingress protection
  • Contact Type: crimp
  • Contact Size: 1.5mm
  • Package: bulk
  • Standard Package: 100
  • Category: circular connectors - housings
