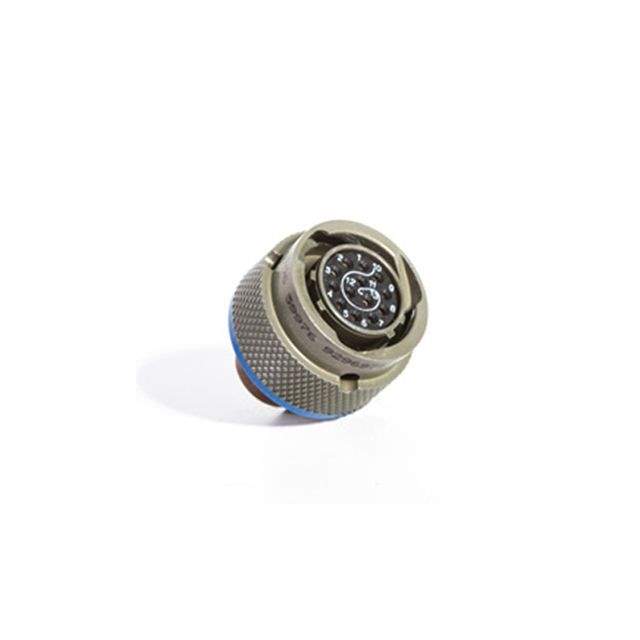

MS27499E14F15P Real Image
Same model may have multiple batches, images only for reference.

MS27499E14F15P

Part No MS27499E14F15P
Manufacturer Amphenol Aerospace Operations
Catalog Circular Connectors
Description CONN RCPT 15POS BOX MNT W/PINS / Conn Circular PIN 15 POS Crimp ST Box Mount 15 Terminal 1 Port
Datasheet
MS27499E14F15P Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol Aerospace Operations
Series Military, MIL-DTL-38999 Series II
Packaging Bulk
Connector Type Receptacle, Male Pins
Number of Positions 15
Shell Size - Insert 14-15
Mounting Panel Mount, Flange
Termination Crimp
Fastening Type Bayonet Lock
Orientation N (Normal)
Ingress Protection Environment Resistant
Shell Material, Finish Aluminum, Nickel Plated, Electroless
Contact Finish Gold
Voltage Rating DC 600VAC, 850VDC
Current Rating 7.5A, 13A
Contact Finish Thickness 50μin (1.27μm)
Operating Temperature Range -65°C ~ 200°C
Win Source Part Number 777930-MS27499E14F15P
Popularity Medium
Supply and Demand Status Balance
Family Name MS27499
Introduction Date October 15, 2006
ECCN EAR99
Country of Origin China, Germany, Mexico
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian MS27499E14F15P CAD Model

Description

The Amphenol Aerospace Operations 777930-MS27499E14F15P is a military series II circular connector receptacle that features 15 positions and male pins crimp.

  • Packaging: Bulk
  • Mounting: Panel Mount with Flange
  • Family: MS27499
  • Applications: Connectors
  • Supply and Demand Status: Balanced
  • Quantity: 1
  • Estimated EOL Date: 2027
  • ECCN: EAR99
  • Country of Origin: China, Germany, Mexico
  • Operating Temperature Range: -65 °C to 200 °C
  • Voltage Rating DC: 600VAC, 850VDC
