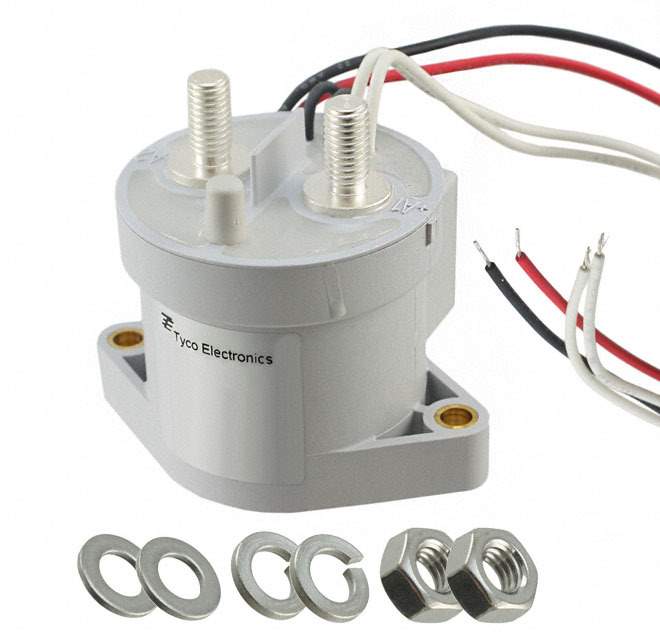

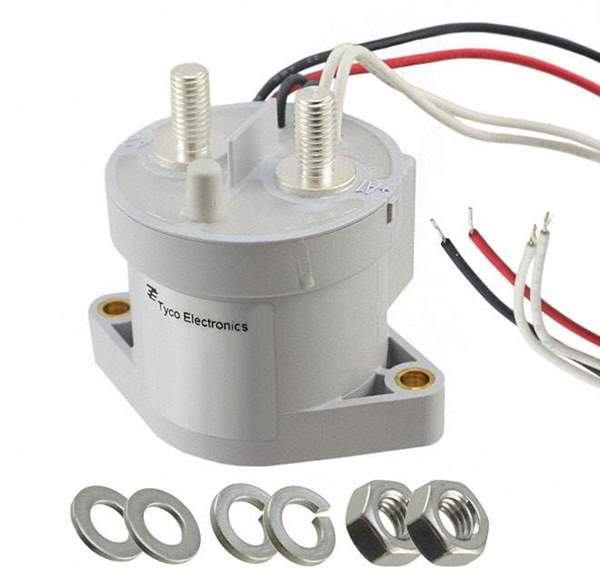

EV200HAANA Real Image
Same model may have multiple batches, images only for reference.

EV200HAANA

Part No EV200HAANA
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY CONTACTOR SPST 500A 12V / Contactor 9V to 36VDC SPST-NO 500A Bottom Mount
Datasheet
EV200HAANA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Aerospace, Defense and Marine
Series EV200, KILOVAC
Packaging Bulk
Relay Type Contactor
Coil Type Non Latching
Coil Current 130mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form X)
Contact Rating (Current) 500A
Switching Voltage 900VDC - Max
Turn On Voltage (Maximum) 9 VDC
Turn Off Voltage (Minimum) 6 VDC
Operate Time 15ms
Release Time 12ms
Features Economizer, Sealed - Hermetically
Mounting Chassis Mount
Termination Style Stud, Wire Leads
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 774278-EV200HAANA
Popularity Medium
Supply and Demand Status Limited
Family Name EV200
Introduction Date February 19, 2013
ECCN EAR99
Country of Origin China, United States of America
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian EV200HAANA CAD Model

Description

The TE Connectivity Aerospace, Defense and Marine EV200HAANA is a contactor relay from TE Connectivity Aerospace, Defense and Marine.

  • Contact Rating (Current): 500A
  • Switching Voltage: 900VDC - Max
