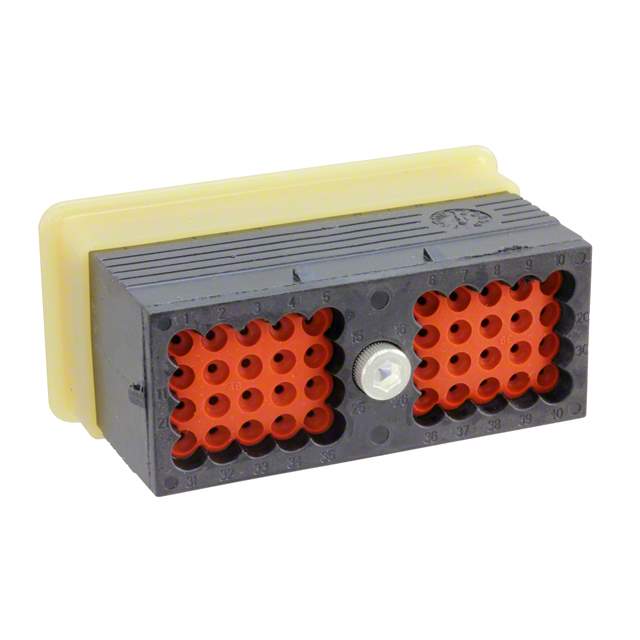

DRC16-40S Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity Deutsch Connectors
Series DRC
Package Bulk
Connector Type Plug
Contact Type Female Socket
Number of Positions 40
Number of Rows 4
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Screw Lock
Color Black
Features Cap (Cover), Dust, IP68
Note Contacts Not Included
Base Product Number DRC16
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Names 1734-1348,DRC16-40S-ND
Standard Package 125
Win Source Part Number 1087715-DRC16-40S
Ultra Librarian 3D Model Ultra Librarian DRC16-40S CAD Model

Description

The DRC16-40S is a 40 position DRC series connector housing manufactured by TE Connectivity Deutsch Connectors.

  • Connector Type: Plug
  • Contact Gender: Female Socket
  • Fastening Type: Screw Lock
  • Mounting Type: Free Hanging (In-Line)
  • Features: Cap (Cover), Dust, and IP68
  • Package Type: Bulk
  • Contact Termination: Crimp
  • Alternative Parts (Cross-Reference): DRC12-40PA, DRC26-40SA, and SMS36P-1DRC-16-40S
