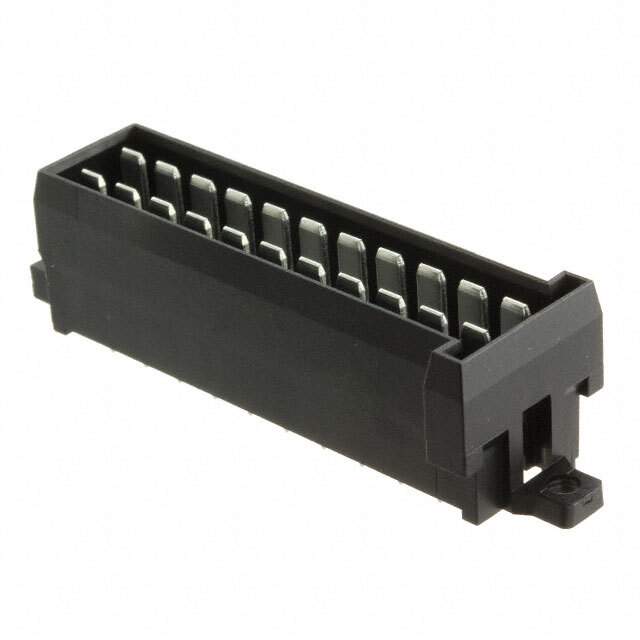

963357-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Plug
Contact Type Tab
Pitch - Mating 0.197" (5.00mm)
Number of Positions 22
Number of Rows 2
Row Spacing - Mating 0.217" (5.51mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Mounting Style Through Hole
Termination Solder
Contact Length - Mating 0.366" (9.30mm)
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.720" (18.30mm)
Contact Shape Rectangular
Contact Finish - Mating Silver
Contact Material Copper Zinc
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide, Mounting Flange
Insulation Color Black
Manufacturer Pack Quantity 252
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810378-963357-1
Ultra Librarian 3D Model Ultra Librarian 963357-1 CAD Model

Description

This electronic component is a TE Connectivity AMP Connector.

  • Connector Type: Plug
  • Positions: 22
  • Mounting Style: Through Hole
  • Board Guide: Yes
  • Mounting Flange: Yes
  • Contact Material: Copper Zinc
  • Connector Type: Board to Cable/Wire
  • Pitch Mating: 0.197" (5.00mm)
  • Contact Finish Mating: Silver
  • Insulation Color: Black
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 252
