Same model may have multiple batches, images only for reference.

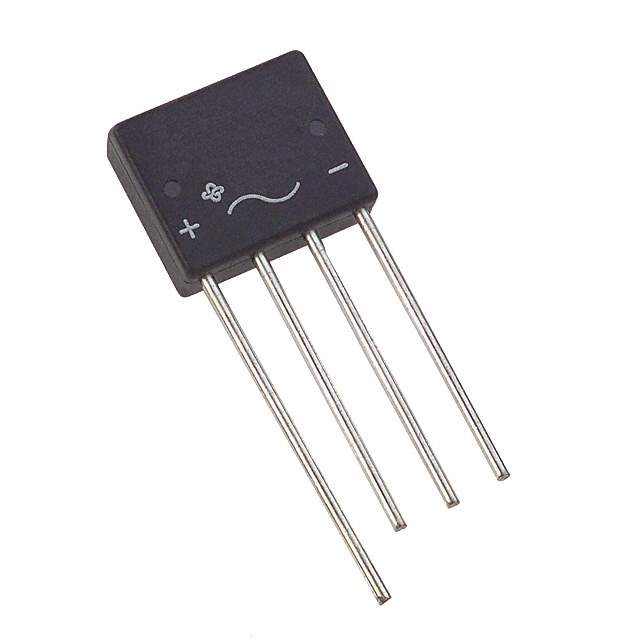

KBL04-E4/51 Real Image
Same model may have multiple batches, images only for reference.

KBL04-E4/51

Part No KBL04-E4/51
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 4A 400V KBL / Diode Rectifier Bridge Single 400V 4A 4-Pin Case KBL Bulk
Datasheet
KBL04-E4/51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 400V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 4A
Current - Reverse Leakage @ Vr 5μA @ 400V
Operating Temperature Range -50°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, KBL
Manufacturer Package KBL
Win Source Part Number 777966-KBL04-E4/51
Popularity Medium
Supply and Demand Status Limited
Family Name KBL04
Introduction Date June 18, 1998
ECCN EAR99
Country of Origin China
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian KBL04-E4/51 CAD Model

Description

The KBL04-E4/51 is a single phase bridge rectifier manufactured by Vishay Semiconductor Diodes Division. The specifications are as follows:

  • Features: High Surge Current Capability, Low Forward Voltage Drop
  • Applications: Power Supplies, Adapters, Lighting Systems
  • Package: 4-SIP, KBL
  • Alternative Parts: KBL04_Q, MDA970G5, KBL04_NL
