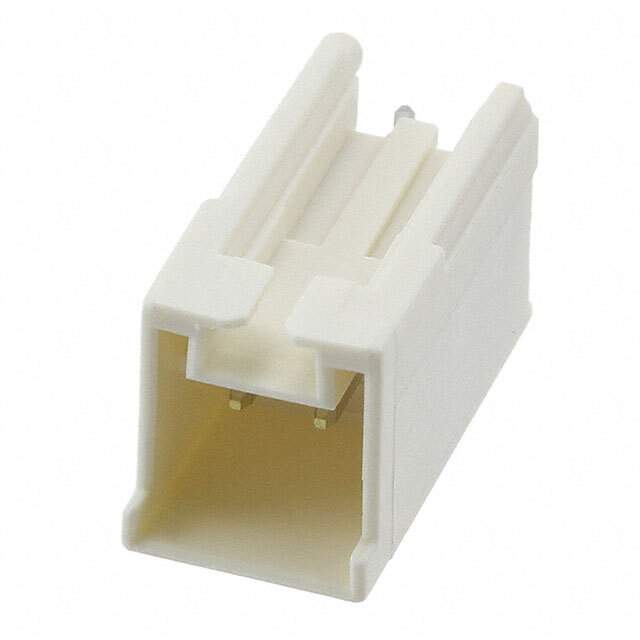

917722-1 Real Image
Same model may have multiple batches, images only for reference.

917722-1

Part No 917722-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 2.5MM  /  Connector Header Through Hole 2 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Signal Double Lock
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Latch Holder
Contact Length - Mating 0.185" (4.70mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.626" (15.90mm)
Insulation Height 0.602" (15.29mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 50V
Mated Stacking Heights 19.2mm
Applications General Purpose
Base Product Number 917722
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-917722-1,A116759,-917722-1-SI,-917722-1-CSI
Standard Package 300
Win Source Part Number 1151642-917722-1
Ultra Librarian 3D Model Ultra Librarian 917722-1 CAD Model

Description

The TE Connectivity AMP Connectors 917722-1 is a 2-position male pin header with a square contact shape.

  • Positions: 2
  • Contact Shape: Square
  • Features: Board guide and kinked pin solder termination
  • Fastening Type: Latch holder
  • Shrouded: With 4 walls
  • Contact Material: Copper alloy
  • Voltage Rating: 50V
  • Insulation Material: Polyamide (PA66), nylon 6/6, glass-filled
  • Operating Temperature Range: -30°C to 105°C
  • Application: General-purpose
  • Package: Bulk
  • Mated Stacking Height: 19.2mm
  • Material Flammability Rating: UL94 V-0
