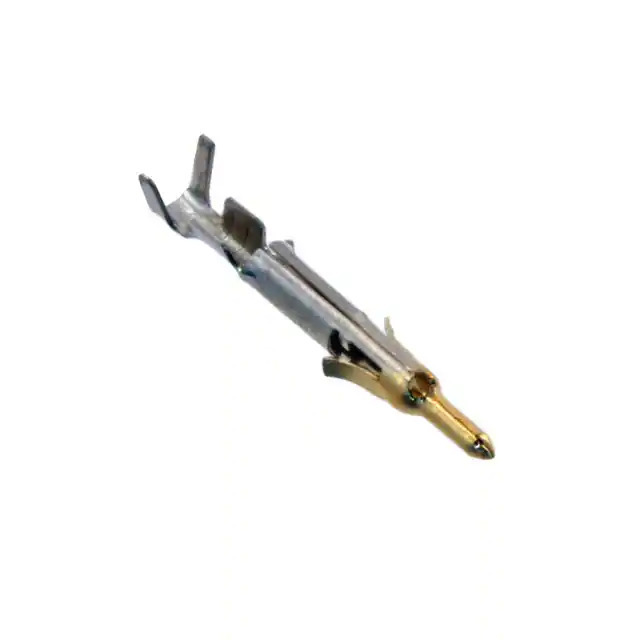

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Multi Purpose
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Bulk
Product Status Active
Type Stamped
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 22-26 AWG
Contact Material Brass
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 770985
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1377626-770985-3
Ultra Librarian 3D Model Ultra Librarian 770985-3 CAD Model

Description

The 1377626-770985-3 is a multi-purpose stamped pin connector from TE Connectivity AMP Connectors.

  • Series: Mini-Universal MATE-N-LOK
  • Termination Style: Crimp
  • Wire Gauge: 22-26 AWG
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Contact Material: Brass
  • Applications: Automotive, Industrial, and Consumer Electronics
  • Packaging: Bulk
  • Product Status: Active
  • REACH Compliant: Yes
  • ECCN: EAR99
