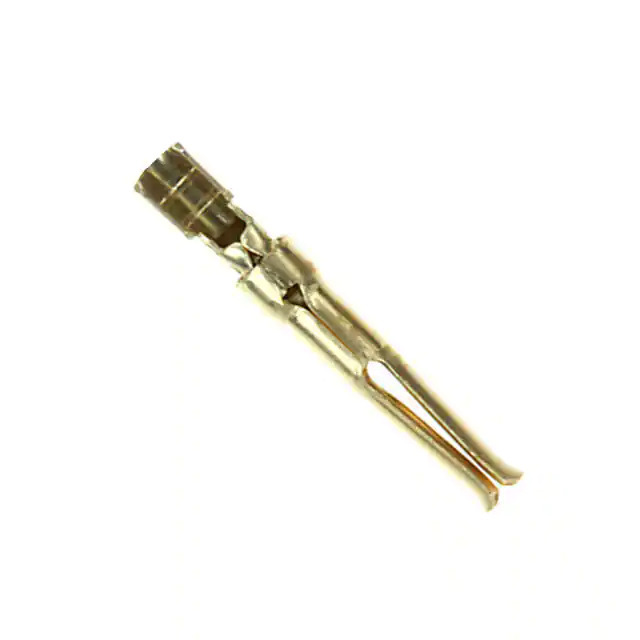

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Multi Purpose
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Tape & Reel (TR)
Product Status Active
Type Stamped
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 20-24 AWG
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness Flash
Base Product Number 205201
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363248-205201-6
Ultra Librarian 3D Model Ultra Librarian 205201-6 CAD Model

Description

The 1363248-205201-6 is a multi-purpose contact for connectors and interconnects.

  • Contact Type: Stamped
  • Manufacturer: TE Connectivity AMP Connectors
  • Series: AMPLIMITE HDP-20
  • Package: Tape and Reel
  • Base Product Number: 205201
  • HTSUS Code: 8536.90.4000
  • Contact Termination: Crimp
  • Wire Gauge: 20-24 AWG
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Contact Material: Copper Alloy
  • MSL Level: 1 (unlimited)
  • ECCN: EAR99
  • REACH Status: Vendor undefined
