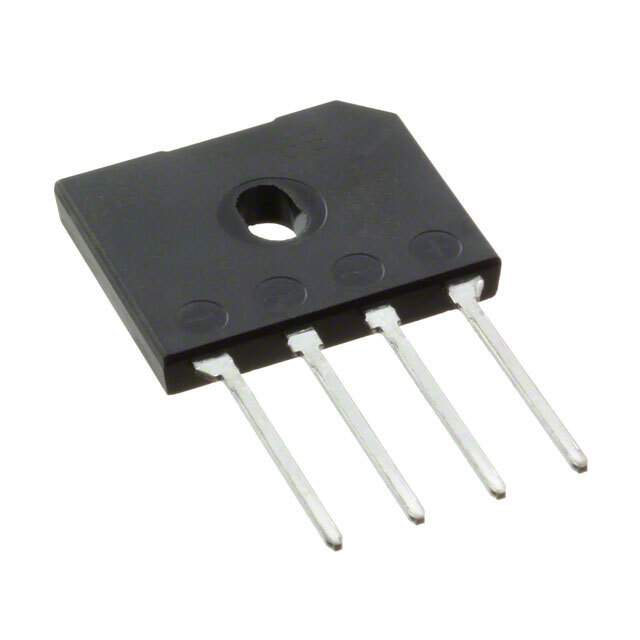

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 200V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Maximum) at If 1.1V at 8A
Current - Reverse Leakage at Vr 5μA at 200V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 4-SIP, GBU
Supplier Device Package GBU
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1177044-GBU8D
Manufacturer Homepage www.panjit.com.tw
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management
Ultra Librarian 3D Model Ultra Librarian GBU8D CAD Model

Description

The GeneSiC Semiconductor 1177044-GBU8D is a single-phase standard diode with a current rating of 8A and a maximum forward voltage of 1.1V at 8A.

  • Peak Reverse Voltage: 200V
  • Reverse Leakage Current: 5μA @ 200V
  • Mounting: through-hole
  • Package: 4-SIP, GBU
  • Operating Temperature: -55°C to 150°C
  • Supply and Demand Status: balanced
  • Package Size: 500
