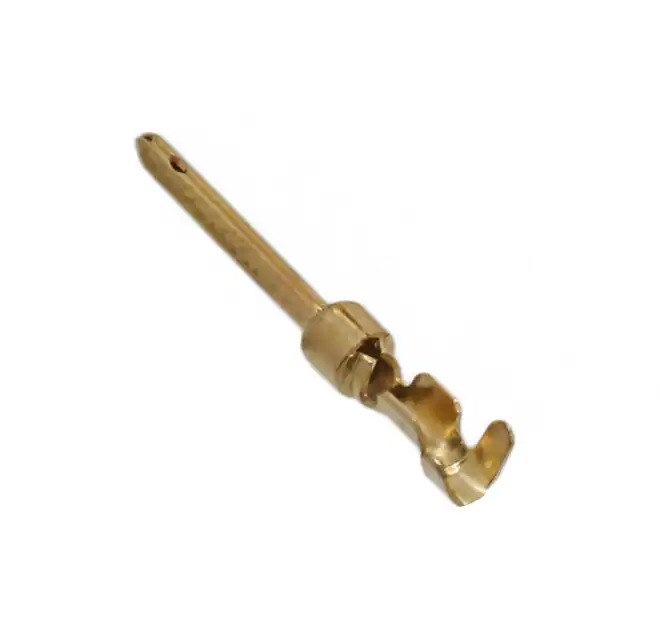

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Multi Purpose
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Tape & Reel (TR)
Product Status Active
Type Stamped
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 20-24 AWG
Contact Material Brass
Contact Finish Gold
Contact Finish Thickness Flash
Base Product Number 1658539
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363105-1658539-2
Ultra Librarian 3D Model Ultra Librarian 1658539-2 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HDP-20 is a multi-purpose contact designed for reliable performance.

  • Series: AMPLIMITE HDP-20
  • Status: Active
  • Base Product Number: 1658539
  • Package: Tape & Reel
  • MSL Level: 1
  • Contact Termination: Crimp
  • Wire Gauge: 20 to 24 AWG
  • Contact Finish: Gold
  • Finish Thickness: Flash
  • Contact Material: Brass
