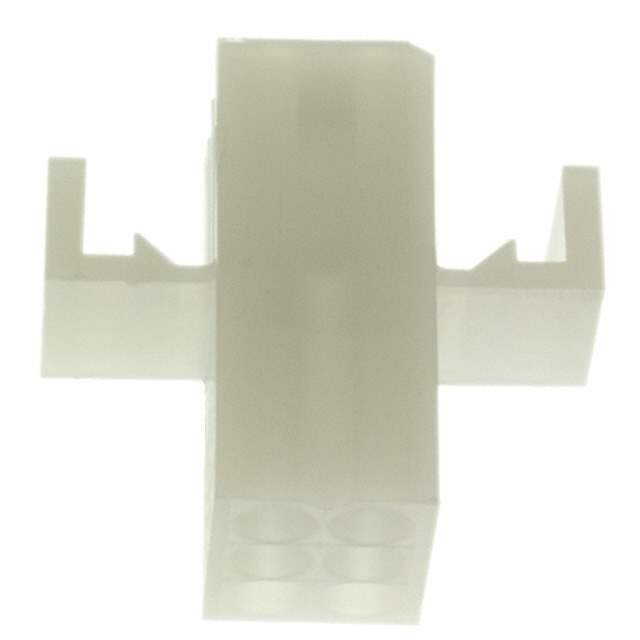

770354-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series Commercial .062" Pin and Socket
Package Bulk
Connector Type Receptacle
Contact Type Male or Female
Number of Positions 6
Pitch 0.145" (3.68mm)
Number of Rows 2
Row Spacing 0.145" (3.68mm)
Mounting Type Panel Mount, Snap-In
Contact Termination Crimp
Fastening Type Locking Ramp
Color Natural
Note Contacts Not Included
Base Product Number 770354
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Names A25489,2266-770354-1,-770354-1-SI,770354-1-ND
Standard Package 1
Win Source Part Number 1025647-770354-1
Ultra Librarian 3D Model Ultra Librarian 770354-1 CAD Model

Description

The TE Connectivity AMP Connectors 770354-1 is a commercial .062" pin and socket rectangular connector housing with a natural color.

  • Connector Type: Receptacle
  • Contact Type: Male or Female
  • Positions: 6
  • Rows: 2
  • Pitch: 0.145" (3.68mm)
  • Row Spacing: 0.145" (3.68mm)
  • Mounting: Panel Mount and Snap-In
  • Fastening: Locking Ramp
  • Contact Termination: Crimp
  • Contacts Included: No
  • Packaging: Bulk
  • Compliance: EAR99
  • MSL Level: 1 (unlimited)
  • REACH: Vendor Undefined
  • HTSUS: 8538.90.6000
