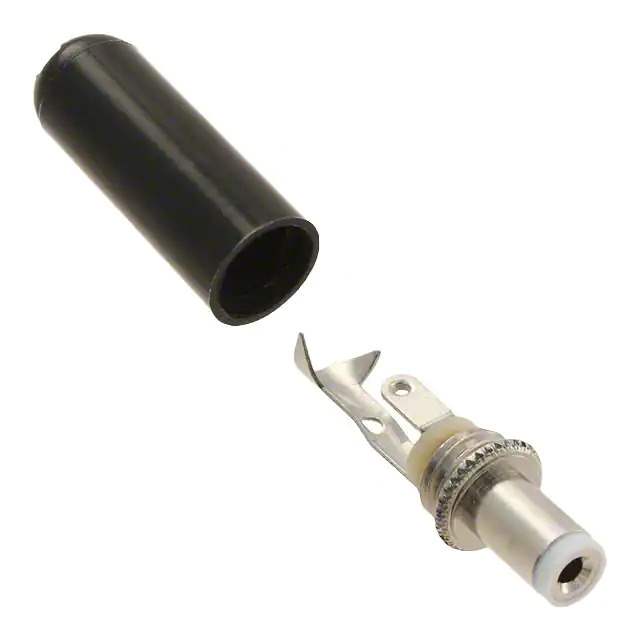

S760 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Barrel Connectors - Power Connectors
Mfr Switchcraft Inc.
Package Bulk
Product Status Active
Connector Type Plug
Gender Female
Industry Recognized Mating Diameter 2.00mm ID (0.079"), 5.50mm OD (0.217")
Actual Diameter 0.079" (2.00mm ID), 0.217" (5.50mm OD)
Number of Positions/Contacts 2 Conductors, 2 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Free Hanging (In-Line)
Termination Solder Eyelet(s)
Shielding Unshielded
Insulation Color Black
Current Rating (Amps) 5 A
Contact Material - Plating Tin
Body Material Brass
Includes 2 pcs - 1 Connector, 1 Handle
Housing Material Thermoplastic
Contact Material Brass
Body Color Silver, Black
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 662922-S760
Ultra Librarian 3D Model Ultra Librarian S760 CAD Model

Description

The 662922-S760 is a power connector designed for various electronic applications.

  • Connector Type: Plug
  • Termination: Solder Eyelet
  • Material: Brass
  • Gender: Female
  • Conductors: 2
  • Contacts: 2
  • Shielding: Unshielded
  • Housing Material: Thermoplastic
  • Current Rating: 5A
  • Application: Barrel Connector
  • Manufacturer: Switchcraft Inc.
  • Quality: Meets the highest quality standards
  • Packaging: Bulk
