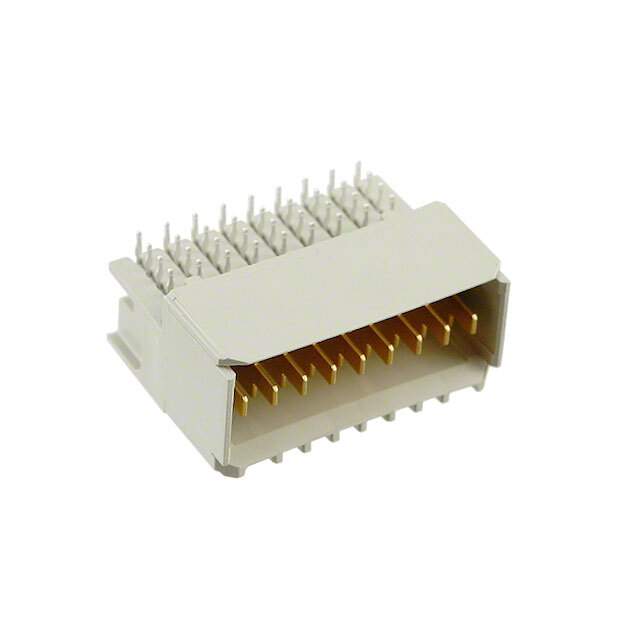

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Specialized
Mfr TE Connectivity AMP Connectors
Series UPM (Universal Power Modules)
Package Tube
Connector Usage Backplane
Connector Type Header, Male Blades
Connector Style Blade Power
Number of Positions 9
Number of Positions Loaded All
Number of Rows 1
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 9 Power
Features Board Guide
Contact Finish Gold or Gold-Palladium
Color Gray
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 125°C
Voltage Rating 250V
Base Product Number 5646959
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 5646959-1-ND,A101868,56469591,2266-5646959-1
Standard Package 19
Win Source Part Number 1205818-5646959-1
Ultra Librarian 3D Model Ultra Librarian 5646959-1 CAD Model

Description

The 5646959-1 is a backplane connector manufactured by TE Connectivity. This connector is designed to provide high-speed, reliable signal transmission between circuit boards in backplane applications. It is commonly used in telecommunications, data communications, and industrial equipment to facilitate communication between various modules or cards within a system.

Applications

  • Telecommunications equipment (servers, routers, switches)
  • Data communications systems
  • Industrial control systems
  • Medical equipment
  • Aerospace and defense applications
  • High-speed data transfer systems

Features

  • High-speed signal transmission: Designed for high-bandwidth applications.
  • Robust construction: Ensures reliable performance in demanding environments.
  • Press-fit termination: Provides a secure and gas-tight connection.
  • Shielded design: Minimizes electromagnetic interference (EMI).
  • High pin count: Supports complex signal routing requirements.
  • Connector Type: Receptacle

Benefits

  • Reliable Performance: Robust design ensures stable signal transmission, reducing the risk of system failures.
  • High Bandwidth: Supports high-speed data transfer, enabling efficient communication between modules.
  • Easy Installation: Press-fit termination simplifies assembly and reduces installation costs.
  • EMI Protection: Shielded design minimizes interference, ensuring signal integrity.
  • Versatile Connectivity: High pin count allows for complex signal routing and versatile connectivity options.

Additional Details

The 5646959-1 backplane connector features a press-fit termination style, allowing for easy and reliable installation into the backplane. It is designed to meet industry standards for signal integrity and reliability. The shielded design helps to minimize EMI, ensuring consistent performance in noisy environments. It is often used in conjunction with mating header connectors on plug-in cards to create a complete backplane interconnect system. Number of Positions - varies based on specific configuration
