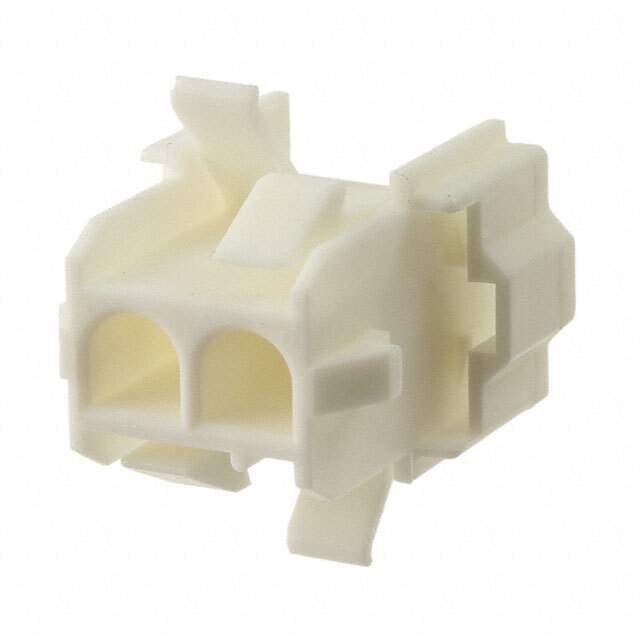

770045-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series Universal MATE-N-LOK II
Package Bulk
Connector Type Receptacle, Front Section
Contact Type Male or Female
Number of Positions 2
Number of Rows 1
Mounting Type Panel Mount, Snap-In
Contact Termination Crimp
Fastening Type Locking Ramp
Color White
Note Contacts Not Included
Base Product Number 770045
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Names A25191,770045-1-ND,2266-770045-1
Standard Package 1
Win Source Part Number 1186181-770045-1
Ultra Librarian 3D Model Ultra Librarian 770045-1 CAD Model

Description

The TE Connectivity AMP Connectors Universal MATE-N-LOK II series is a white-colored connector with 2 positions.

  • Series: Universal MATE-N-LOK II
  • Color: White
  • Positions: 2
  • Connector Type: Receptacle, Front Section
  • Contact Type: Male or Female
  • Rows: 1
  • Fastening Type: Locking Ramp
  • Contact Termination: Crimp
  • Contacts Included: No
  • Mounting: Panel Mount, Snap-In
  • Package: Bulk
  • MSL Level: 1 (Unlimited)
  • REACH Status: Vendor Undefined
  • HTSUS: 8538.90.6000
  • Other Names: A25191, 770045-1-ND, 2266-770045-1
  • Base Product Number: 770045
