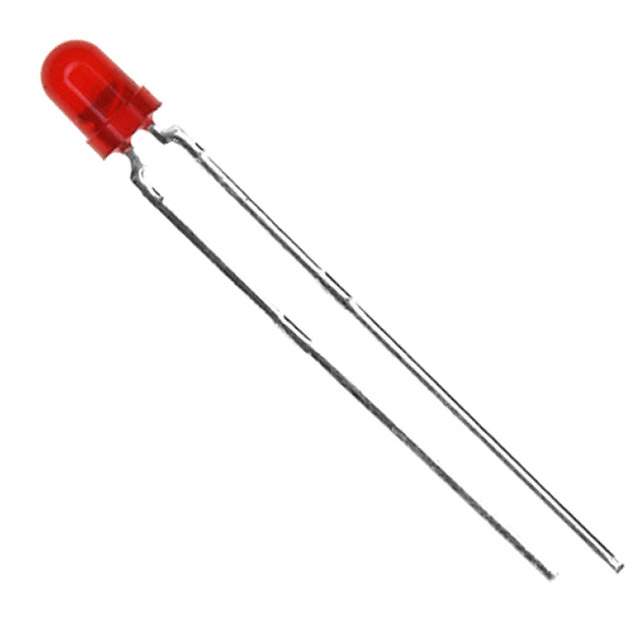

TLHR4605 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Vishay Semiconductor Opto Division
Package Bulk
Color Red
Configuration Standard
Lens Transparency Diffused
Millicandela Rating 6mcd
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage - Forward (Vf) (Typ) 2V
Current - Test 10mA
Viewing Angle 120°
Mounting Type Through Hole
Wavelength - Dominant 619nm
Wavelength - Peak 635nm
Package / Case Radial
Supplier Device Package T-1
Height (Max) 6.10mm
Base Product Number TLHR4605
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 751-1132
Standard Package 5,000
Win Source Part Number 1087230-TLHR4605
Ultra Librarian 3D Model Ultra Librarian TLHR4605 CAD Model

Description

The TLHR4605 is a through-hole type LED indication - discrete product with a red color and a diffused lens transparency manufactured by Vishay.

  • Type: Through-Hole LED
  • Color: Red
  • Lens Transparency: Diffused
  • Viewing Angle: 120°
  • Millicandela Rating: 6mcd
  • Forward Voltage: 2V
  • Current Test: 10mA
  • Peak Wavelength: 635nm
  • Dominant Wavelength: 619nm
  • REACH Affected: No
  • Popularity: Medium
