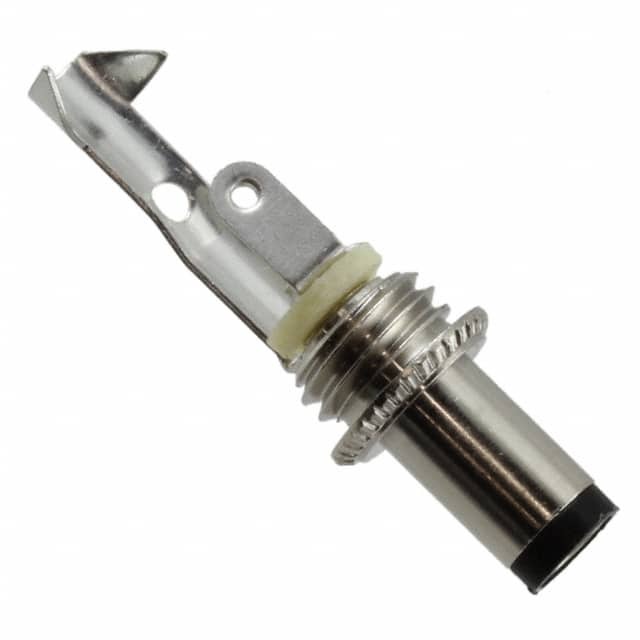

Same model may have multiple batches, images only for reference.

2P1515

Name: 2P1515
Brand: Switchcraft Inc.
SKU: 893769
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	2P1515
Manufacturer	Switchcraft Inc.
Catalog	Barrel - Power Connectors
Description	CONN PWR PLUG 2.5X5.5MM SOLDER / Power Barrel Connector Plug 2.50mm ID (0.098"), 5.50mm OD (0.217") Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Barrel Connectors - Power Connectors
Mfr	Switchcraft Inc.
Package	Bulk
Product Status	Active
Connector Type	Plug
Gender	Female
Industry Recognized Mating Diameter	2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter	0.098" (2.50mm ID), 0.217" (5.50mm OD)
Number of Positions/Contacts	2 Conductors, 2 Contacts
Internal Switch(s)	Does Not Contain Switch
Mounting Type	Free Hanging (In-Line)
Termination	Solder Eyelet(s)
Shielding	Unshielded
Insulation Color	Black
Mating Length/Depth	0.374" (9.50mm)
Contact Material - Plating	Tin
Contact Material	Copper Alloy
Body Color	Silver
Standard Package	1 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	893769-2P1515
Ultra Librarian 3D Model	Ultra Librarian 2P1515 CAD Model

Description

The 893769-2P1515 is a female power connector plug designed for various electronic applications.

Manufacturer: Switchcraft Inc.
Connector Type: Power Connector Plug
Gender: Female
Conductors: 2
Contacts: 2
Termination: Solder Eyelet
Material: Copper Alloy
Mating Diameter (ID/OD): 2.50mm ID / 5.50mm OD
