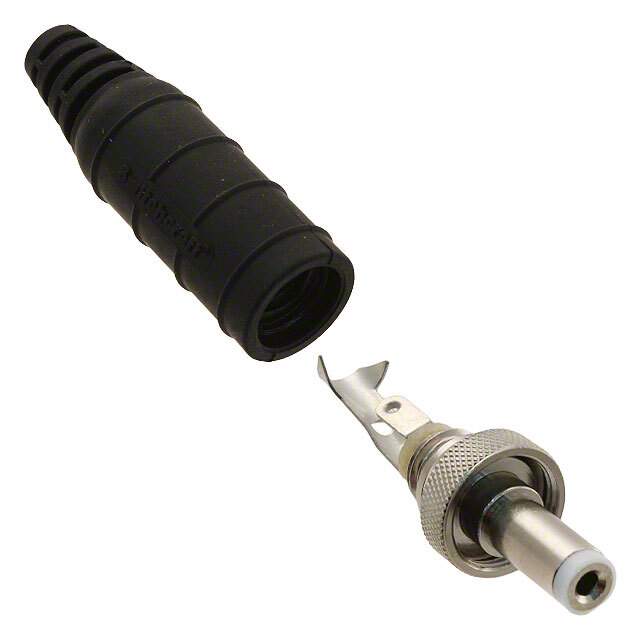

S761KS15 Real Image
Same model may have multiple batches, images only for reference.

S761KS15

Part No S761KS15
Manufacturer Switchcraft Inc.
Catalog Barrel - Power Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel - Power Connectors
Mfr Switchcraft Inc.
Package Bulk
Connector Type Plug
Gender Female
Industry Recognized Mating Diameter 2.00mm ID (0.079"), 5.50mm OD (0.217")
Actual Diameter 0.079" (2.00mm ID), 0.217" (5.50mm OD)
Number of Positions/Contacts 2 Conductors, 2 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Free Hanging (In-Line)
Termination Solder Eyelet(s)
Shielding Unshielded
Features Cable Clamp, Thread Lock
Insulation Color White
Voltage - Rated 30VDC
Current Rating (Amps) 5 A
Ingress Protection IP68
Contact Material - Plating Tin
Body Material Copper Alloy
Includes 2 pcs - 1 Connector, 1 Handle
Housing Material Thermoplastic
Contact Material Copper Alloy
Body Color Silver, Black
Base Product Number S761K
Other Names SC1385
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1294269-S761KS15
Ultra Librarian 3D Model Ultra Librarian S761KS15 CAD Model

Description

The Switchcraft Inc. SC1385 is a female plug power connector used in barrel connections.

  • Contact Material: Copper Alloy
  • Shielding: Unshielded
  • Conductors: 2
  • Contacts: 2
  • Voltage Rating: 30VDC
  • Current Rating: 5A
  • Features: Thread lock and a cable clamp
  • Termination: Solder eyelet
  • Packaging: Bulk packaging
  • REACH: Not affected
  • HTSUS: 8536.69.8000
  • Internal Switches: Does not contain any internal switches
  • Includes: Two pieces, one connector, and one handle
  • Industry-Recognized Mating Diameter: 2.00mm ID (0.079") and 5.50mm OD (0.217")
  • Series: S761K series
