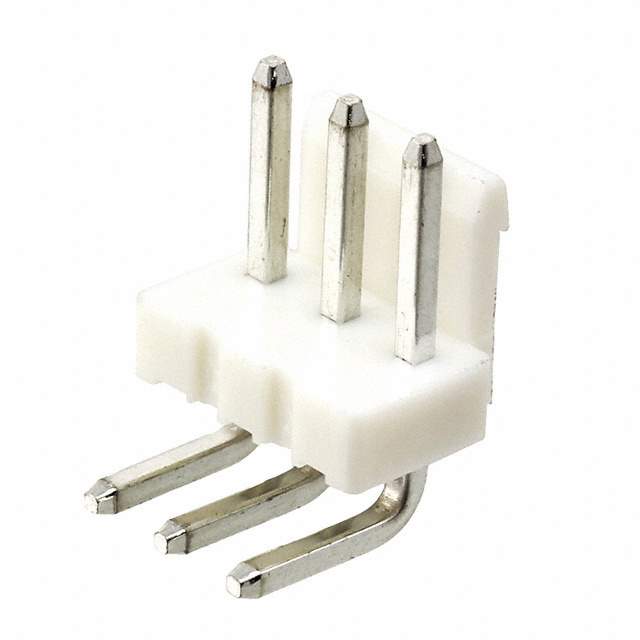

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.338" (8.59mm)
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.339" (8.61mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 80.0µin (2.03µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) 7.5A
Voltage Rating 250VAC
Contact Finish Thickness - Post 80.0µin (2.03µm)
Applications General Purpose, Industrial, Lighting
Base Product Number 647676
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -647676-3-CSI,-647676-3-SI,647676-3-ND,A114289
Standard Package 1,000
Win Source Part Number 1334297-647676-3
Ultra Librarian 3D Model Ultra Librarian 647676-3 CAD Model

Description

The TE Connectivity AMP Connectors 1334297-647676-3 is a through-hole right angle header connector with a friction lock fastening type. This connector has 3 positions and is loaded with all male pins.

  • Part Number: 1334297-647676-3
  • Mounting: Through-Hole, Right Angle
  • Fastening Type: Friction Lock
  • Positions: 3
  • Contact Type: Male Pins
  • Positions Loaded: All
  • Voltage Rating: 250VAC
  • Current Rating: 7.5A
  • Contact Material: Brass
  • Contact Plating: Tin
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Flammability Rating: UL94 V-0
  • Applications: General Purpose, Industrial, and Lighting
  • Mating Pitch: 0.156” (3.96mm)
  • Contact Finish Thickness (Mating): 80.0µin (2.03µm)
  • Contact Finish Thickness (Post): 80.0µin (2.03µm)
  • Contact Length (Post): 0.142” (3.60mm)
  • Contact Length (Mating): 0.338” (8.59mm)
  • Operating Temperature: -25°C to 105°C
  • ROHS3 Compliant: Yes
