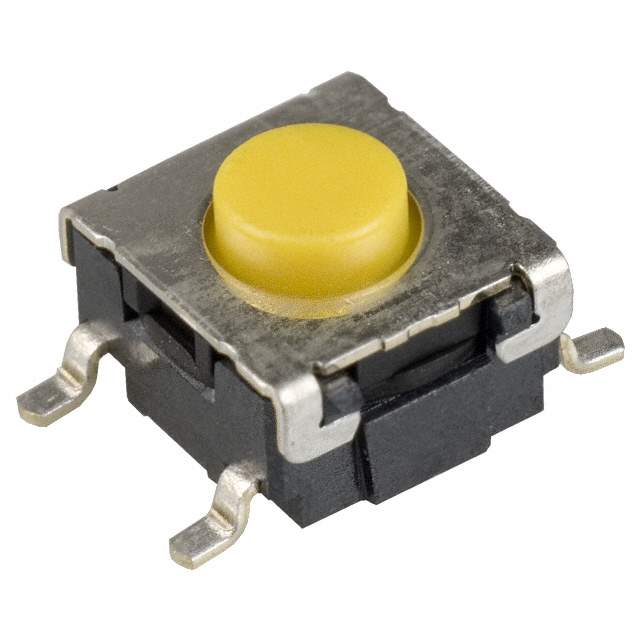

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 4.30mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.60mm x 6.00mm
Illumination Non-Illuminated
Operating Force 230gf
Ingress Protection IP67 - Dust Tight, Waterproof
Features Sealed - Fully
Switch Travel 0.25mm
Mechanical Life 300,000 Cycles
Temperature Range - Operating -25°C to 70°C
Win Source Part Number 68781-B3S-1002P
Family Name B3S
Introduction Date May 31, 2000
ECCN EAR99
Country of Origin China
Halogen Free Unknown
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian B3S-1002P CAD Model

Description

Description

The B3S-1002P is a highly reliable tactile switch, designed for a variety of electronic applications. Its robust construction ensures long-lasting performance and consistent operation. With easy-to-solder terminals, this switch is perfect for both professional and hobbyist projects.

Features and Benefits

  • Compact design for space-saving applications
  • High tactile feedback for reliable operation
  • Extended lifespan with up to 1 million cycles
  • Easy integration into circuit boards with standard pin layout

Applications

  • Consumer Electronics
  • Remote Controls
  • Industrial Equipment
  • DIY Electronics Projects
