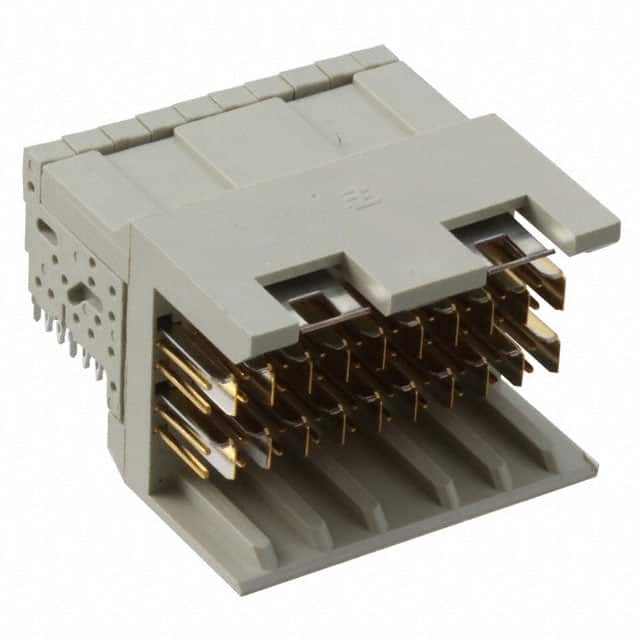

6469354-1
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr TE Connectivity
Series Z-PACK HM-Zd
Package Bulk
Product Status Obsolete
Connector Type Header, Male Pins and Blades
Connector Style High Speed
Number of Positions 60
Number of Positions Loaded All
Pitch 0.098" (2.50mm)
Number of Rows 4
Number of Columns 10
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 40 Signal, 20 Ground
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 0.700A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -65°C ~ 105°C
Voltage Rating 250V
Base Product Number 6469354
Standard Package 1,200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856900-6469354-1
Ultra Librarian 3D Model Ultra Librarian 6469354-1 CAD Model

Description

The Z-PACK HM-Zd Backplane Connector is a high-speed and reliable solution for your specialized connection needs.

  • Positions: 60
  • Pitch: 0.098" (2.50mm)
  • Connector Type: Header with Male Pins and Blades
  • Termination Style: Press-Fit
  • Contact Finish: Gold
  • Voltage Rating: 250V
  • Temperature Range: -65°C to 105°C
  • Manufacturer: TE Connectivity
  • Series: 6469354
  • Product Status: Obsolete
