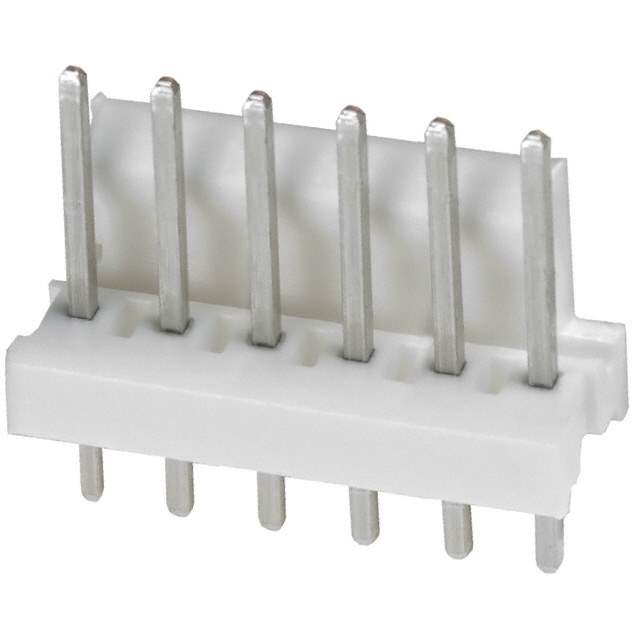

640456-6

Part No 640456-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS .100 TIN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Number of Positions 6
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.535" (13.59mm)
Insulation Height 0.305" (7.75mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Thermoplastic
Temperature Range - Operating -55°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating Varies by Wire Gauge
Voltage Rating 250VAC
Applications General Purpose
Win Source Part Number 054580-640456-6
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 640456-6 CAD Model

Description

Product Overview

The 640456-6 is a robust and reliable electronic component, ideal for applications requiring precision and durability. Meticulously designed to ensure superior performance, this component is a great asset in modern electronics.

Features and Benefits

  • High Durability: Engineered with materials that withstand tough conditions, ensuring longevity.
  • Excellent Conductivity: Offers outstanding electrical conductivity for efficient performance.
  • Compact Design: Designed to save space within electronic setups.

Applications

  • Consumer electronics
  • Automotive systems
  • Telecommunication equipment
  • Industrial automation
  • Robotics projects

Additional Details

This component is compatible with a range of devices and systems, making it versatile for various project requirements.
