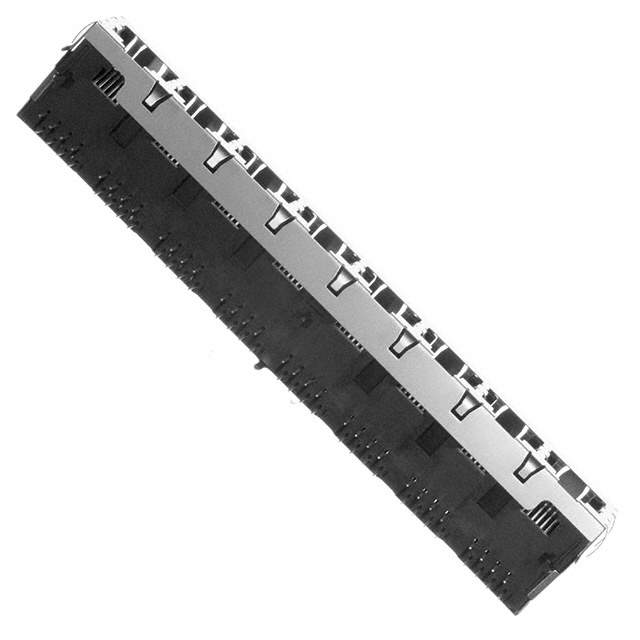

6339169-3 Real Image
Same model may have multiple batches, images only for reference.

6339169-3

Part No 6339169-3
Manufacturer TE Connectivity
Catalog Modular Connectors
Description CONN MOD JACK 8P8C R/A SHIELDED / Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks
Mfr TE Connectivity AMP Connectors
Package Tray
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 8
Number of Rows 1
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Shielded, EMI Finger
Ratings Cat5
Features Board Guide
LED Color Does Not Contain LED
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Temperature Range - Operating -40°C ~ 85°C
Base Product Number 6339169
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A97712,-1189439-SI,-6339169-3-SI,-1189439-SI-ND,2266-6339169-3,63391693
Standard Package 10
Win Source Part Number 1226063-6339169-3
Ultra Librarian 3D Model Ultra Librarian 6339169-3 CAD Model

Description

The 6339169-3 is a shielded, EMI finger modular jack connector designed by TE Connectivity AMP Connectors.

  • Ports: Eight
  • Rating: Cat5
  • Material: Polycyclohexylenedimethylene Terephthalate
  • Orientation: 90-degree Right Angle
  • Mounting: Through-Hole
  • Temperature Range: -40°C to 85°C
