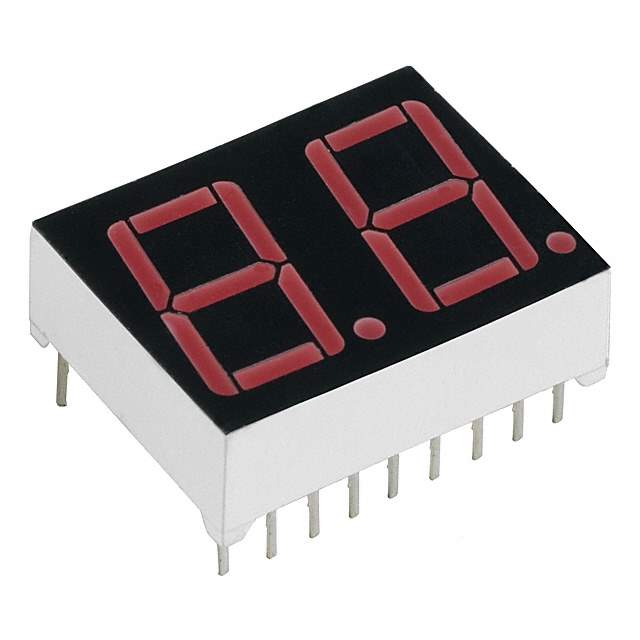

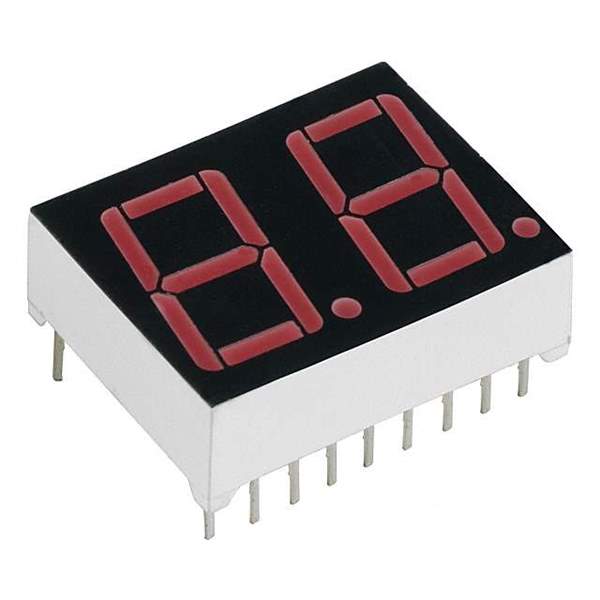

MAN6710 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Everlight Electronics Co Ltd
Packaging Bulk
Number of Characters 2
Dimension 0.750" H x 0.985" W x 0.315" D (19.05mm x 25.02mm x 8.00mm)
Digit/Alpha Size 0.56" (14.22mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 2V (Maximum)
Current - Test 20mA
Millicandela Rating 0.42mcd
Wavelength - Peak 650nm
Power Dissipation (Maximum) 960mW
Package 18-DIP (0.600", 15.24mm)
Win Source Part Number 768520-MAN6710
Popularity Medium
Supply and Demand Status Limited
Family Name MAN6710
Introduction Date December 02, 1997
ECCN EAR99
Country of Origin China
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MAN6710 CAD Model

Description

The Everlight Electronics Co Ltd MAN6710 is a 7-segment display type with 2 characters and a digit/alpha size of 0.56" (14.22mm).

  • Package: Bulk
  • Win Source Part Number: 768520-MAN6710
  • Family: MAN6710
  • Category: Optoelectronics
  • Millicandela Rating: 0.42mcd
  • Voltage-Forward (Vf): 2V (maximum)
  • Current-Test: 20mA
  • Wavelength-Peak: 650nm
  • Common Pin: Common Anode
  • Dimension: 0.750" H x 0.985" W x 0.315" D (19.05mm x 25.02mm x 8.00mm)
  • Power Dissipation (Maximum): 960mW
  • Alternative Parts (Cross-Reference): LBP-602VA2, HDSP-521A-00000, HDSP-521A
  • Introduction Date: December 02, 1997
  • ECCN: EAR99
  • Supply and Demand Status: Limited
