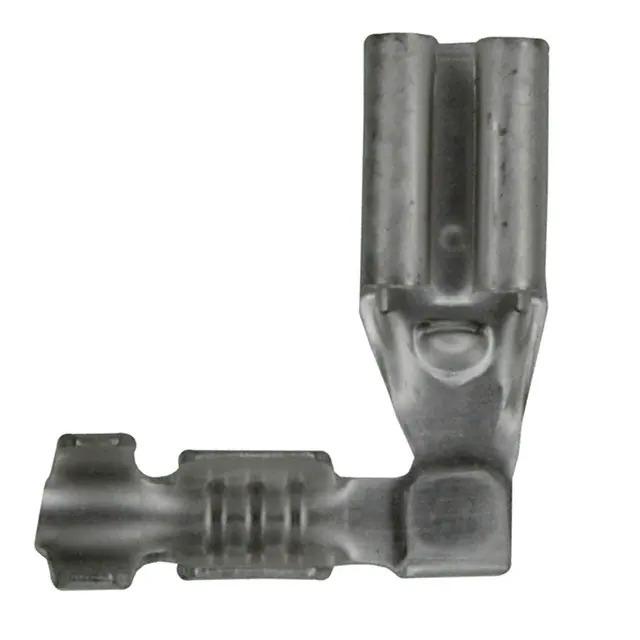

61070-1 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.110" (2.79mm)
Tab Thickness 0.020" (0.51mm)
Tab Length -
Length - Overall -
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line), Right Angle
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.060" ~ 0.100" (1.52mm ~ 2.54mm)
Base Product Number 61070
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365039-61070-1
Ultra Librarian 3D Model Ultra Librarian 61070-1 CAD Model

Description

The 1365039-61070-1 is a quick connect terminal from TE Connectivity AMP Connectors.

  • Series: Faston series
  • Mounting Type: Free hanging (in-line), Right-angle
  • Wire Gauge: 18-22 AWG
  • Contact Finish: Tin
  • Terminal Gender: Female
  • Terminal Type: Angled - 90°, Flag
  • Tab Width: 0.110" (2.79mm)
  • Tab Thickness: 0.020" (0.51mm)
  • Insulation Diameter: 0.060" to 0.100" (1.52mm to 2.54mm)
  • Product Status: Active
  • ECCN: EAR99
  • HTSUS Code: 8536.90.4000
  • MSL Level: 1 (unlimited)
  • REACH Status: Vendor undefined
