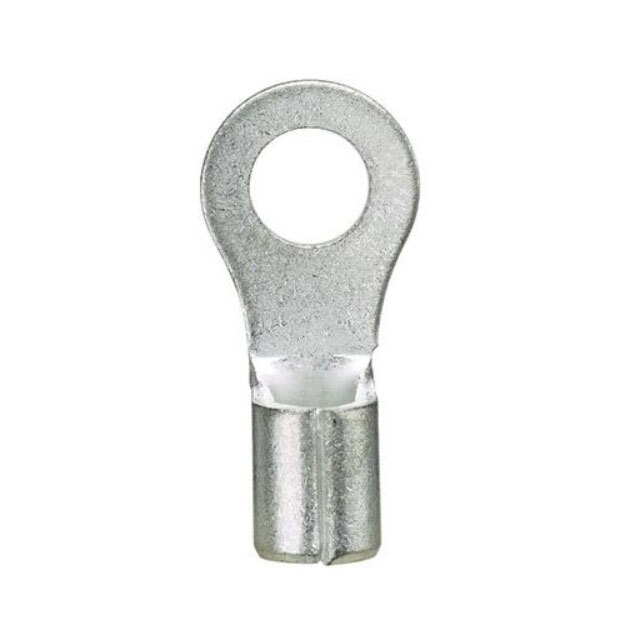

PV8-56R-TY

Part No PV8-56R-TY
Manufacturer Panduit Corp
Catalog Terminals
Description CONN RING CIRC 8AWG #5/16 CRIMP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Terminal Type Circular
Stud/Tab Size 5/16 Stud
Thickness 0.040" (1.02mm)
Width - Outer Edges 0.590" (14.99mm)
Length - Overall 1.640" (41.66mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 8 AWG
Insulation Insulated
Features Brazed Seam
Color Red
Contact Material Copper
Contact Finish Tin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1534624-PV8-56R-TY
Ultra Librarian 3D Model Ultra Librarian PV8-56R-TY CAD Model
