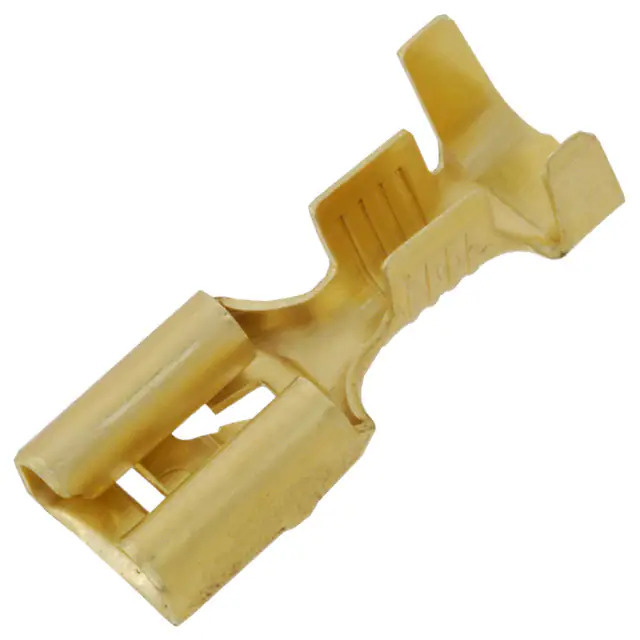

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Fastin-Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.305" (7.75mm)
Length - Overall 0.750" (19.05mm)
Termination Crimp
Wire Gauge 12-16 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish -
Insulation Diameter 0.130" ~ 0.210" (3.30mm ~ 5.33mm)
Base Product Number 60249
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364792-60249-1
Ultra Librarian 3D Model Ultra Librarian 60249-1 CAD Model

Description

The TE Connectivity AMP Connectors 60249 Fastin-Faston quick disconnect connector is a versatile solution for quick and easy wire connections.

  • Wire Gauge: 12-16 AWG
  • Terminal Type: Female
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Insulated: No
  • Contact Material: Brass
  • Length: 0.750" (19.05mm)
  • Lifecycle Status: Active
  • Packaging: Tape & Reel
