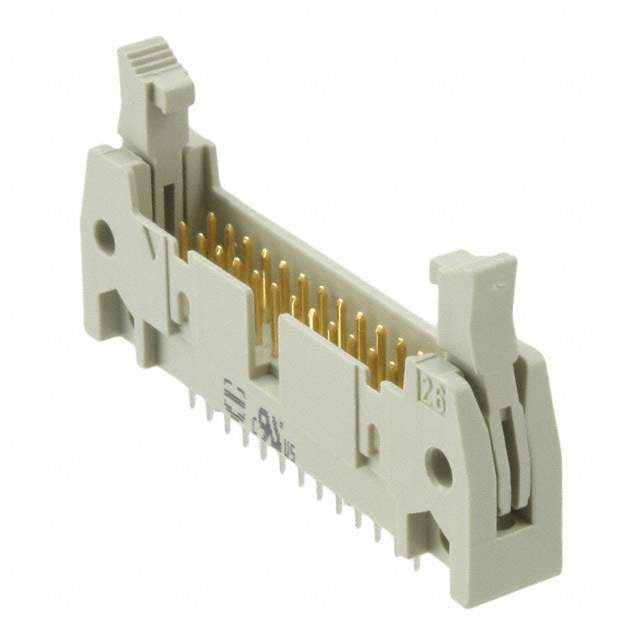

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr HARTING
Series SEK
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.228" (5.80mm)
Contact Length - Post 0.114" (2.90mm)
Overall Contact Length 0.650" (16.51mm)
Insulation Height 0.681" (17.30mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 125°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Gray
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 100 pcs
Win Source Part Number 1381242-09185266904
Ultra Librarian 3D Model Ultra Librarian 09185266904 CAD Model

Description

The SEK series is a range of male pin header connectors designed for use in electronic devices.

  • Positions: 26
  • Contact Material: Copper Alloy
  • Termination: Solder
  • Fastening Type: Latch Lock/Eject Hooks, Long
  • Shrouded: Yes, 4 Walls
  • Insulation Color: Gray
  • Connection Style: Board to Cable/Wire
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Gold
  • Insulation Material: Polybutylene Terephthalate (PBT) and Glass-Filled
  • Temperature Range: -55°C to 125°C
  • Package: 100 pcs
