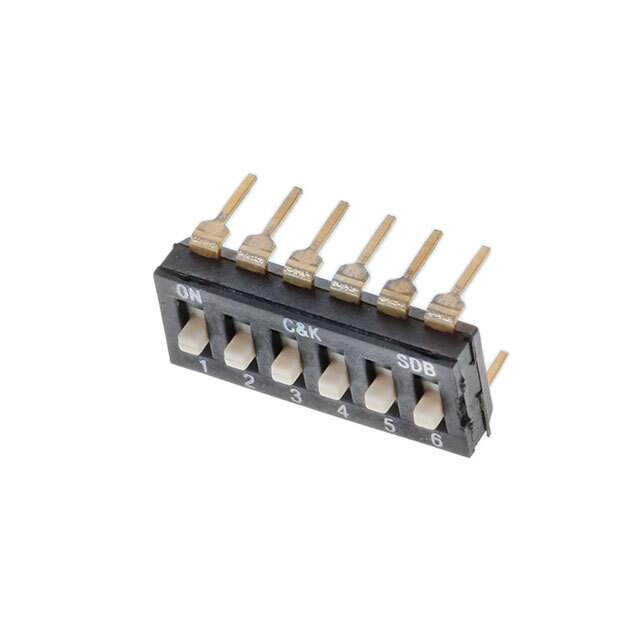

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDB
Package Tube
Product Status Obsolete
Circuit SPST
Number of Positions 6
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Phosphor Bronze
Contact Finish Gold
Height Above Board 0.179" (4.55mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyamide (PA46), Nylon 4/6
Length 0.643" (16.34mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Other Names 2266-SDB06H1BD,CKN12002
Standard Package 29
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233708-SDB06H1BD
Ultra Librarian 3D Model Ultra Librarian SDB06H1BD CAD Model

Description

The SDB series DIP switch is a 6-position switch with a pitch of 0.100" (2.54mm) and full termination style.

  • Manufacturer: C&K
  • Positions: 6
  • Pitch: 0.100" (2.54mm)
  • Termination Style: PC Pin
  • Voltage Rating: 24VDC
  • Contact Finish: Gold
  • Contact Material: Phosphor bronze
  • Height Above Board: 0.179" (4.55mm)
  • Length: 0.643" (16.34mm)
  • Circuit: SPST
  • Actuator Type: Slide
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Mounting: Through hole
  • Operating Temperature: -40°C to 85°C
  • Package: Tube
  • Standard Package: 29
  • Obsolete: Yes
