Same model may have multiple batches, images only for reference.

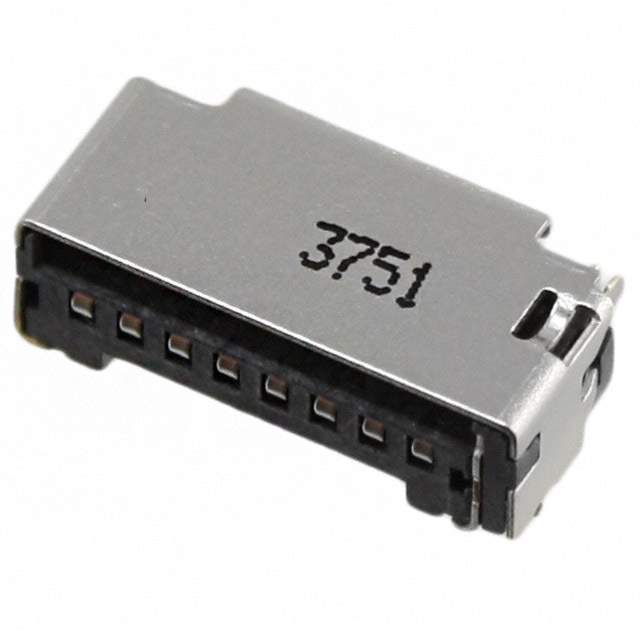

47309-3751 Real Image
Same model may have multiple batches, images only for reference.

47309-3751

Part No 47309-3751
Manufacturer Molex, LLC
Catalog Memory Connectors - Accessories
Description Conn Micro SD Card HDR 8 POS 1.1mm Solder RA SMD Embossed T/R 0.5A/Contact
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Contact Material Bronze
Contact Plating Gold
Contact Resistance 25 mΩ
Country of Origin HK
Current Rating 500 mA
Depth 3.75 mm
Gender Female
Halogen Free Low Halogen
Housing Material Stainless Steel
Insulation Resistance 100 MΩ
Length 11.4 mm
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 8
Number of Contacts 8
Number of Rows 1
Orientation Right Angle
Packaging Cut Tape
Pitch 1.1 mm
Plating Gold
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination SMD/SMT
Voltage Rating (DC) 5 V
Width 5.5 mm
Win Source Part Number 975538-47309-3751
Categories Memory Connectors - Accessories
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 47309-3751 CAD Model

Description

The Molex 975538-47309-3751 is a female connector suitable for memory connectors and accessories.

  • Pitch: 1.1 mm
  • Width: 5.5 mm
  • Contacts: 8
  • Orientation: Right-angled
  • Maximum Current Rating: 500 mA
  • Contact Resistance: 25 mΩ
  • Contact Plating: Gold
  • Housing Material: Stainless steel
  • RoHS Compliant: Yes
  • Halogen Content: Low halogen content
  • Operating Temperature: -40 °C to 85 °C
  • Insulation Resistance: 100 MΩ
