Same model may have multiple batches, images only for reference.

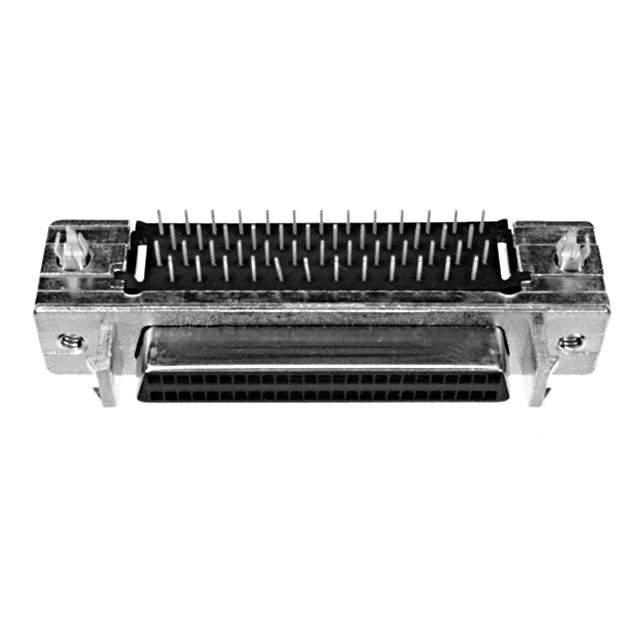

5787082-5 Real Image
Same model may have multiple batches, images only for reference.

5787082-5

Part No 5787082-5
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN D-TYPE RCPT 50POS R/A SLDR
Datasheet
5787082-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPLIMITE .050 III
Packaging Tube
Connector Style D-Type
Connector Type Receptacle, Female Sockets
Number of Positions 50
Number of Rows 2
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Type Signal
Mounting Board Edge, Through Hole, Right Angle
Flange Feature Housing/Shell (2-56); Latchblocks
Termination Solder
Features Board Lock, Shielded
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Operating Temperature Range -55°C ~ 105°C
Voltage Rating 30V
Current Rating 1A
Color Black
Housing Material Thermoplastic
Contact Material Phosphor Bronze
Backset Spacing 0.146" (3.71mm)
Win Source Part Number 766188-5787082-5
Popularity Medium
Supply and Demand Status Limited
Family Name 5787082
Introduction Date March 10, 2008
ECCN EAR99
Country of Origin China, Mexico
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 5787082-5 CAD Model

Description

The 5787082-5 from TE Connectivity AMP Connectors is an AMPLIMITE .050 III receptacle connector.

  • Positions: 50
  • Pitch: 0.050" (1.27mm)
  • Voltage Rating: 30V
  • Current Rating: 1A
  • Mounting: Board edge, through hole, right angle
  • Housing Material: Thermoplastic
  • Material Flammability Rating: UL94 V-0
  • Halogen-Free Compliant: No
  • EOL Date (Estimated): 2026
