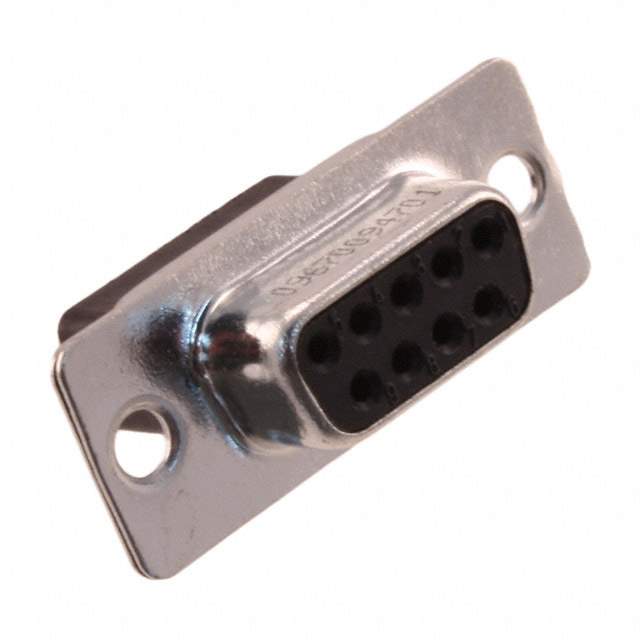

09670094701 Real Image
Same model may have multiple batches, images only for reference.

09670094701

Part No 09670094701
Manufacturer HARTING
Catalog D - SUB, D - SHAPED connectors
Description CONN D-SUB HOUSING RCPT 9POS / Receptacle for Female Contacts Housing D-Sub Connector 9 Position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Housings
Mfr HARTING
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Receptacle for Female Contacts
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Mounting Type Panel Mount
Flange Feature Housing/Shell (Unthreaded)
Shell Material, Finish Steel, Tin Plated
Temperature Range - Operating -55°C ~ 125°C
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Note Contacts Not Included
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 858709-09670094701
Ultra Librarian 3D Model Ultra Librarian 09670094701 CAD Model

Description

The 858709-09670094701 is a D-Sub connector housing designed for D-Sub, D-Shaped connectors manufactured by HARTING.

  • Positions: 9
  • Contact Type: Signal
  • Material: Steel
  • Plating: Tin-plated
  • Temperature Range: -55°C to 125°C
  • Type: Receptacle
  • Gender: Female
  • Rows: 2
  • Mounting: Panel mounting
  • ECCN: EAR99
  • REACH: Unaffected
