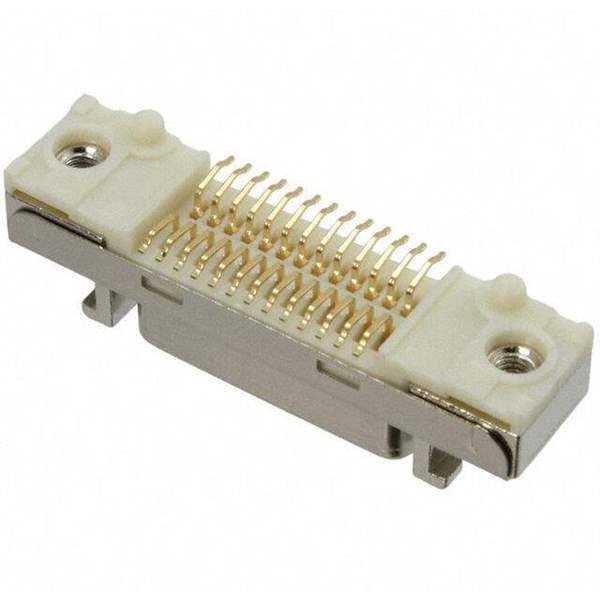

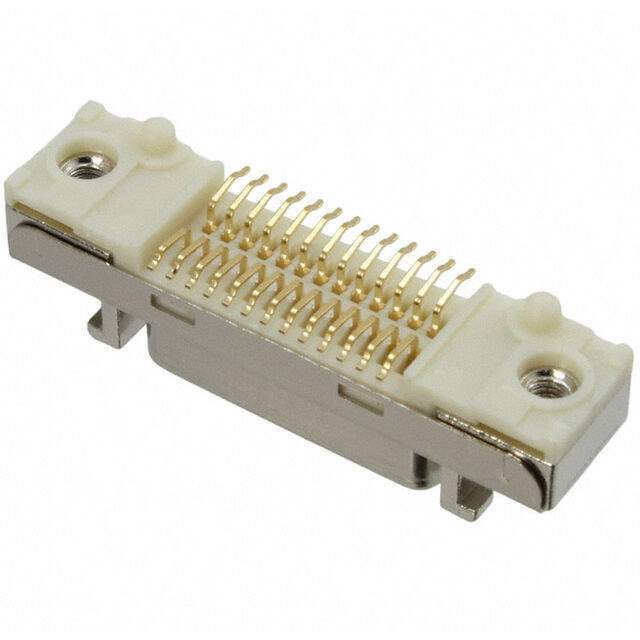

10226-2210PE 3M
Same model may have multiple batches, images only for reference.

10226-2210PE

Part No 10226-2210PE
Manufacturer 3M
Catalog D - SUB, D - SHAPED connectors
Description CONN RCPT 26POS SMD SOLDER
Datasheet
10226-2210PE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer 3M
Category Connectors, Interconnects > D-Sub, D-Shaped Connectors > Centronics Connectors
Packaging Box
Part Status Active
Connector Type Receptacle
Number of Positions 26
Number of Rows 2
Mounting Type Surface Mount
Termination Solder
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Ultra Librarian 3D Model Ultra Librarian 10226-2210PE CAD Model

Description

• Wiper-on-wiper contact for reliable repetitive plugging

• Interface latch design for connection stability

• IEEE 1284C Interface as a 36 contact connector

• Contacts: 20, 26 and 36
