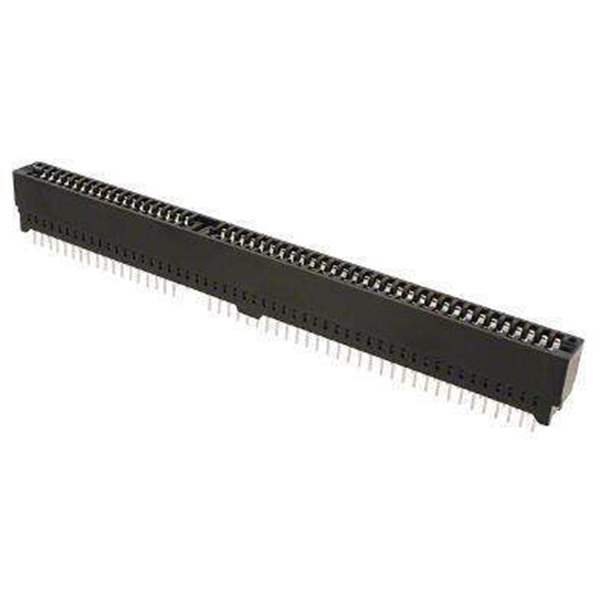

5645169-3TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5645169-3

Part No 5645169-3
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN CARDEDGE FMALE 98POS 0.100
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Card Edge Connectors Edgeboard Connectors
Package Tube
Product Status Active
Card Type Special 18/31 Dual Combo
Gender Female
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Pitch 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Contact Material Phosphor Bronze
Win Source Part Number WS1209447-5645169-3
Ultra Librarian 3D Model Ultra Librarian 5645169-3 CAD Model

Description

98 Position Female Connector Special 18/31 Dual Combo Gold 0.100" (2.54mm) Black
