Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks
Mfr TE Connectivity
Package Tray
Product Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Number of Rows 1
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Unshielded
Ratings Cat3
Features Board Guide
LED Color Does Not Contain LED
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Housing Material Polyamide (PA), Nylon
Temperature Range - Operating -40°C ~ 85°C
Base Product Number 5557785
Standard Package 95 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856566-5557785-1
Ultra Librarian 3D Model Ultra Librarian 5557785-1 CAD Model

Description

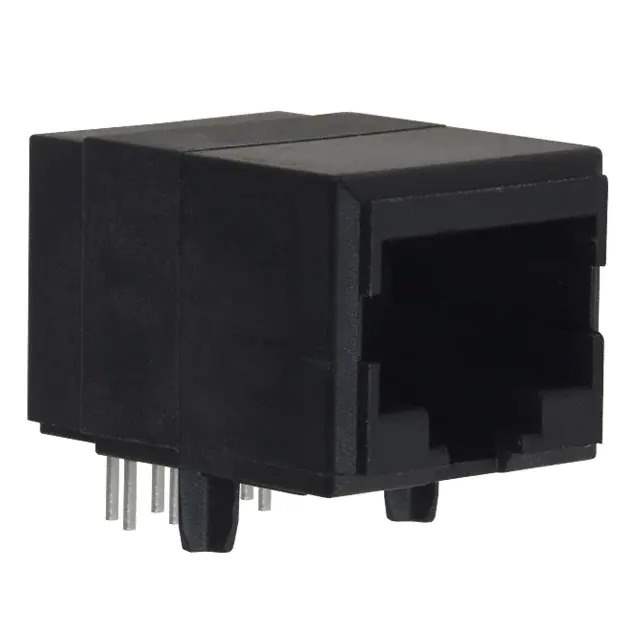

The 856566-5557785-1 is a modular connector jack from TE Connectivity.

  • Category: Connectors, Interconnects
  • Application: Board Guide
  • Orientation: 90-degree Angle (Right)
  • Rows: One
  • Positions/Contacts: 8p8c (RJ45, Ethernet)
  • Termination Method: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0µin (1.27µm)
  • Housing Material: Polyamide (PA) and Nylon
  • Temperature Range: -40°C to 85°C
  • Rated for: Cat3 Applications
  • LED: No
  • Shielded: Unshielded
  • Package: Tray
  • Pieces: 95
  • Mounting Type: Through-Hole
  • Manufacturer: TE Connectivity
  • Product Status: Active
