5569284-1 TE Connectivity
Same model may have multiple batches, images only for reference.

5569284-1

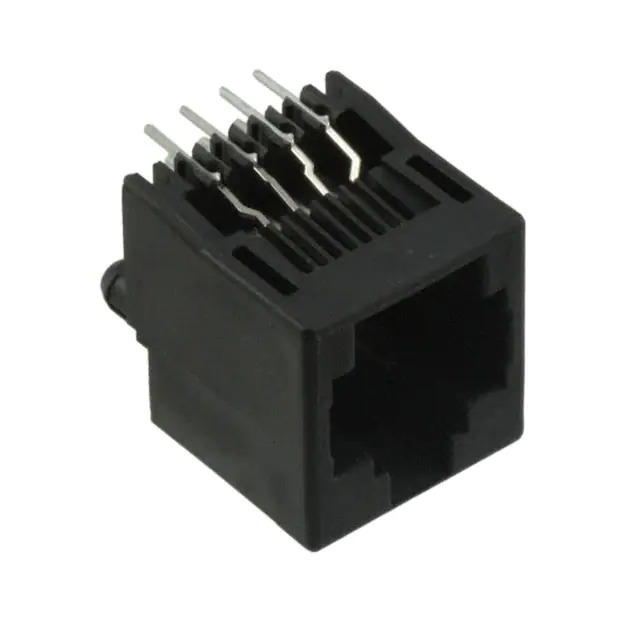

Part No 5569284-1
Manufacturer TE Connectivity
Catalog Modular Connectors
Description CONN MOD JACK 8P8C VERT UNSHLD / Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Unshielded Cat3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks
Mfr TE Connectivity AMP Connectors
Series -
Package Tray
Product Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Number of Rows 1
Mounting Type Through Hole
Orientation Vertical
Termination Solder
Shielding Unshielded
Ratings Cat3
Features Board Lock
LED Color Does Not Contain LED
Ingress Protection -
Tab Direction User Selectable
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Housing Material Polyamide (PA), Nylon
Temperature Range - Operating -40°C ~ 85°C
Base Product Number 5569284
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362676-5569284-1
Ultra Librarian 3D Model Ultra Librarian 5569284-1 CAD Model

Description

The TE Connectivity AMP Connectors modular connector jack is a high-quality component designed for use in various electronic applications.

  • Temperature Range: -40°C to 85°C
  • Board Lock: Yes
  • Shielding: Unshielded
  • Contact Finish: Gold with a thickness of 50.0µin (1.27µm)
  • Orientation: Vertical
  • Housing Material: Polyamide (PA) and nylon
  • Port: Single
  • LED: No
