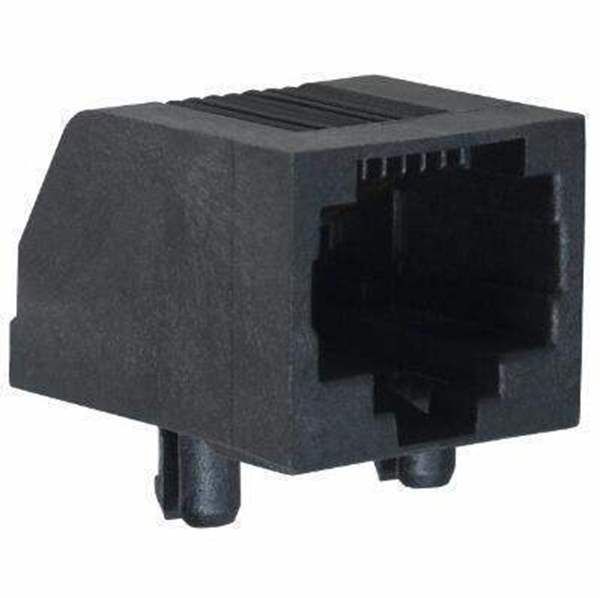

5555764-1TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Modular Connectors Modular Connector Jacks
Product Status Active
Package Tray
Mounting Type Surface Mount
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Termination Style Solder
Shielding Unshielded
Features Board Lock, Solder Retention
LED Color Does Not Contain LED
Tab Direction Down
Win Source Part Number WS1209388-5555764-1
Ultra Librarian 3D Model Ultra Librarian 5555764-1 CAD Model

Description

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded Cat3
